Class 800 Threaded Ball Valve Lbs Full Bore/Threaded (Steel) — API 6D Data Sheet

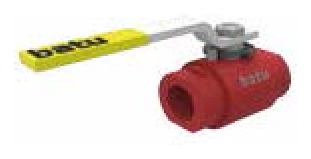

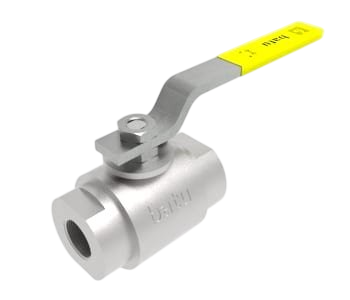

This class 800 threaded ball valve is a full bore, two-piece steel body valve for DN 15 to DN 50 lines, built to API 6D / ISO 14313 with ASME B1.20.1 threaded ends. It is rated CLASS 800 Lbs (PN 55) for −29 °C to +180 °C service on natural gas, LPG-LNG, fuel oil, compressed air and other gases. The tables below are the data sheet itself: the specification, the parts list with both the carbon steel and the stainless build, and the face-to-face and connection dimensions.
Specifications
| Property | Value |
|---|---|
| Type | BKV-Dİ-TG |
| Size range | DN 15 – DN 50 |
| Pressure class | CLASS 800 |
| Body material | Steel |
| Bore / connection | Full bore / threaded |
| Design | API 6D / ISO 14313 |
| Dimensions | ASME B 16.10 |
| Connections | ASME B 1.20.1 |
| Working pressure | CLASS 800 Lbs (PN 55) |
| Working temperature | −29 °C / +180 °C |
| Usage areas | Natural gas, LPG-LNG, fuel-oil, pressurized air and other gases |
Parts list
| Item no | Item description | Material | |
|---|---|---|---|
| 13 | Ball action handle | st 37 | 1.4301. |
| 12 | Bolt | ST 42 Gal. | 1.4301. – 1.4401. |
| 11 | Counter nut | 5,6 Gal. | 1.4301. |
| 10 | Stopping washer | St 37 | 1.4301. |
| 9 | Pressure ring | St 37 | 1.4301. – 1.4401. |
| 8 | Spindle O-ring | Viton | Viton |
| 7 | Neck tightness element | PTFE-Teflon | PTFE-Teflon |
| 6 | Body tightness O-ring | Viton | Viton |
| 5 | Ball tightness element | PTFE-Teflon | PTFE-Teflon |
| 4 | Action spindle | 1.4021 | 1.4301. – 1.4401. |
| 3 | Ball | 1.4301 / 1.4086 | 1.4305. – 1.4401. |
| 2 | Cover | A 105 | 1.4301. – 1.4401. |
| 1 | Body | A 105 | 1.4301. – 1.4401. |
Dimensions and connection sizes
| Size | Inch | CLASS 800 (PN 55) | ||||||
|---|---|---|---|---|---|---|---|---|
| L | G | H | d | D | t | Kg | ||
| DN 15 | 1/2" | 75 | 125 | 55 | 15 | 1/2" | 14 | — |
| DN 20 | 3/4" | 80 | 125 | 60 | 20 | 3/4" | 17 | — |
| DN 25 | 1" | 90 | 135 | 80 | 25 | 1" | 20 | — |
| DN 32 | 1 1/4" | 110 | 150 | 90 | 32 | 1 1/4" | 22 | — |
| DN 40 | 1 1/2" | 120 | 185 | 100 | 40 | 1 1/2" | 25 | — |
| DN 50 | 2" | 140 | 185 | 105 | 50 | 2" | 28 | — |
Data sheet

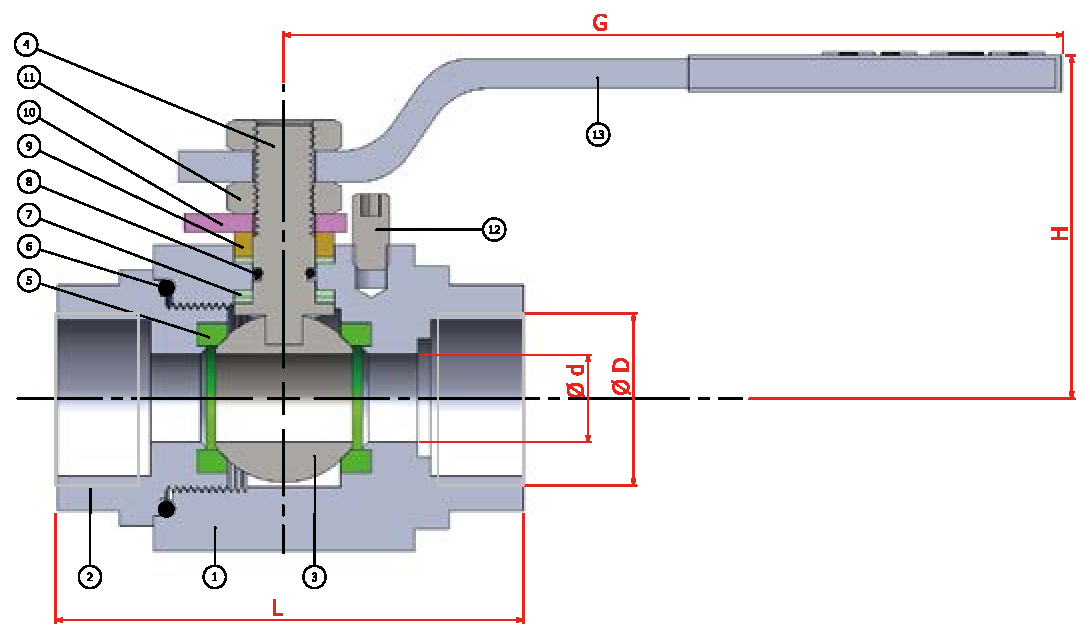

The original document carries the sectional drawing whose item numbers the parts list refers to, and the same tables in Turkish and English.
