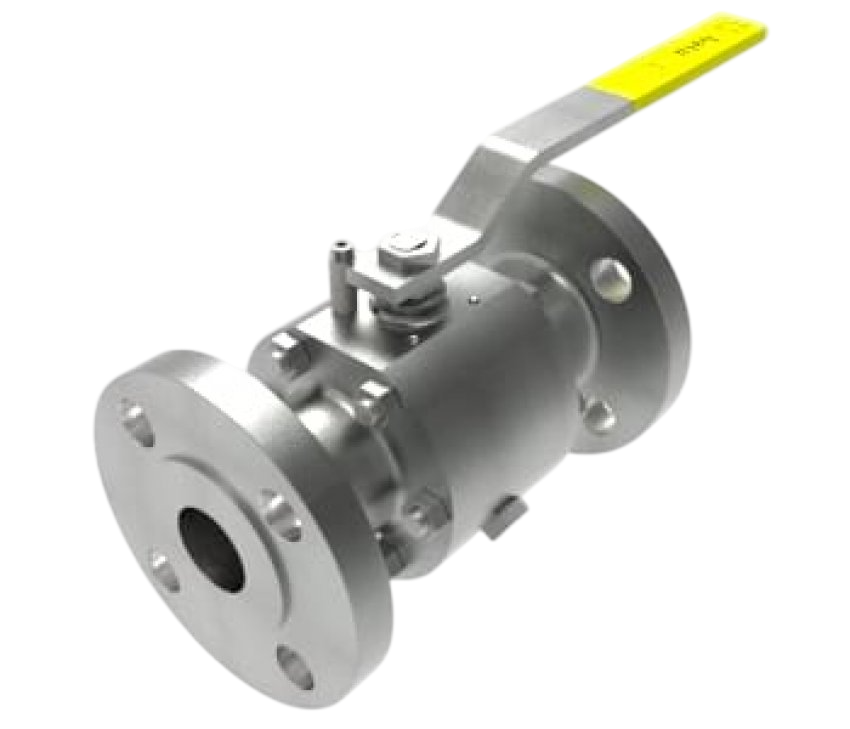

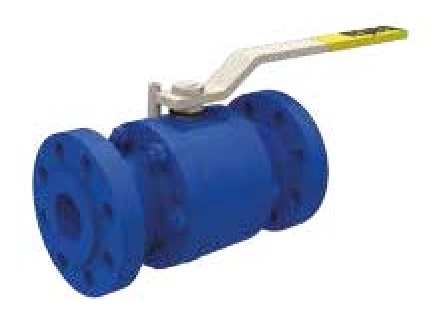

PN 100 Reduction Bore/Flanged (Steel)
PN 100 ball valve for DN 15 to DN 200 lines, type BKV-FL-RG, reduced bore and flanged, in steel. Built to EN 1092-1. See all high pressure european norm ball valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Ball valve |
|---|---|
| Type code | BKV-FL-RG |
| Size range | DN 15 – DN 200 |
| Body | Steel |
| Connection | Reduced bore / Flanged |
| Dimensions | EN 558 |
| Connections | EN 1092-1 |
| Working pressure | PN 100 |
| Working temperature | −30 °C / +180 °C |
| Usage areas | Water, hot water, steam, pressurized air |

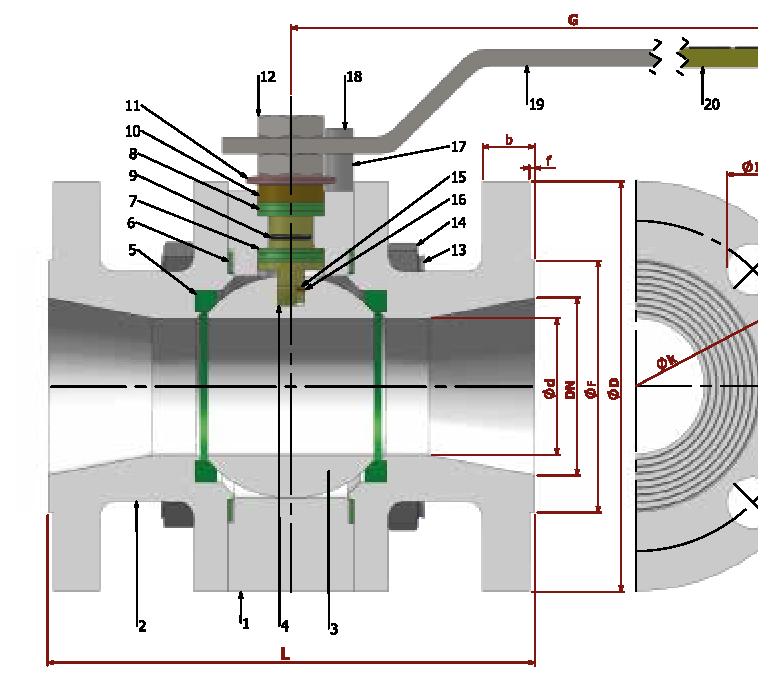

Parts list
| No | Item description | Material |
|---|---|---|
| 20 | Plastic covering | PVC / PVC |
| 19 | Ball action handle | st 37 / 1.4301. |
| 18 | Bolt | ST 42 Gal. / 1.4301. - 1.4401. |
| 17 | Stopping pin | ST 42 Gal. / 1.4301. |
| 16 | Antistatic ball | 1.4301. / 1.4301. - 1.4401. |
| 15 | Antistatic spring | 1.4301. / 1.4301. - 1.4401. |
| 14 | Nut | 5.6. / 1.4301. - 1.4401. |
| 13 | Stopping pin | 4140 - 5140 / 1.4301. |
| 12 | Counter nut | 5,6 Gal. / 1.4301. |
| 11 | Bowl washer | 50 Cr V 4 / 1.4301. |
| 10 | Pressure ring | MS 58 / 1.4301. - 1.4401. |
| 9 | Spindle o-ring | VITON / VITON |
| 8 | Burgman graphite o-ring | EN 1514-1 / EN 1514-1 |
| 7 | Neck tightness element | PTFE-Teflon / PTFE-Teflon |
| 6 | Body tightness element | PTFE-Teflon / PTFE-Teflon |
| 5 | Ball tightness element | PTFE-Teflon / PTFE-Teflon |
| 4 | Action spindle | 1,4021 / 1.4301. - 1.4401. |
| 3 | Ball | 1.4301 / 1.4086 / 1.4305. - 1.4401. |
| 2 | Cover | SAE 1020 / 1.4301. - 1.4401. |
| 1 | Body | SAE 1020 / 1.4301. - 1.4401. |
Dimensions and connection sizes
| DN | Size | PN 100 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | G | H | f | d | D | b | k | Hole unit | I | F | Kg | ||
| DN 15 | 1/2" | 210 | 150 | 75 | 2 | 12 | 105 | 20 | 75 | 4 | 14 | 45 | |
| DN 20 | 3/4" | 230 | 150 | 75 | 2 | 15 | 130 | 24 | 90 | 4 | 18 | 58 | |
| DN 25 | 1" | 230 | 150 | 83 | 2 | 20 | 140 | 24 | 100 | 4 | 18 | 65 | |
| DN 32 | 1 1/4" | 260 | 180 | 90 | 2 | 25 | 155 | 24 | 110 | 4 | 23 | 75 | |
| DN 40 | 1 1/2" | 260 | 230 | 95 | 3 | 32 | 170 | 26 | 125 | 4 | 23 | 85 | |
| DN 50 | 2" | 300 | 275 | 115 | 3 | 40 | 195 | 28 | 145 | 4 | 27 | 95 | |
| DN 65 | 2 1/2" | 340 | 275 | 120 | 3 | 50 | 220 | 30 | 170 | 8 | 27 | 120 | |
| DN 80 | 3" | 380 | 320 | 135 | 3 | 65 | 230 | 32 | 180 | 8 | 27 | 130 | |
| DN 100 | 4" | 430 | 380 | 150 | 3 | 80 | 265 | 36 | 210 | 8 | 30 | 160 | |
| DN 125 | 5" | 500 | 450 | 170 | 3 | 100 | 315 | 40 | 250 | 8 | 33 | 185 | |
| DN 150 | 6" | 550 | 450 | 200 | 3 | 125 | 355 | 44 | 290 | 12 | 33 | 215 | |
| DN 200 | 8" | 650 | 650 | 235 | 3 | 150 | 430 | 52 | 360 | 12 | 36 | 270 | |
