PN 16/40 3 Y-T Full Bore/Flanged (Steel)

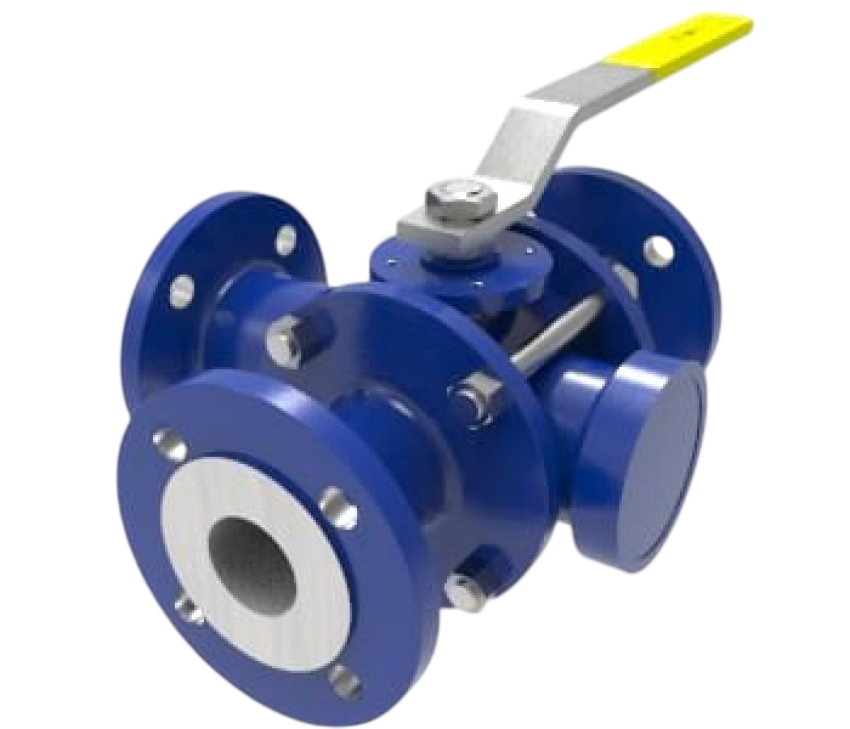

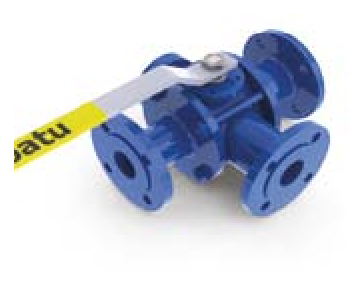

PN 16 – PN 40 three-way “T” type ball valve for DN 15 to DN 100 lines, type BKV.3T-FL-TG, full bore and flanged, in steel. Built to EN 1092-1. See all 3 way ball valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Ball valve 3 ways "T" type |
|---|---|
| Type code | BKV.3T-FL-TG |
| Size range | DN 15 – DN 100 |
| Body | Steel |
| Connection | Full bore / Flanged |
| Dimensions | EN 558 |
| Connections | EN 1092 - 1 |
| Working pressure | PN 16 - 40 |
| Working temperature | −30 °C / +180 °C |
| Usage areas | Water, hot water, steam, pressurized air |
Parts list
| No | Item description | Material |
|---|---|---|
| 21 | Plastic covering | PVC / PVC |
| 20 | Ball action handle | st 37 / 1.4301. |
| 19 | Nut | 5.6. / 1.4301. - 1.4401. |
| 18 | Stopping pin | CK 35 / CK 45 / 1.4301. |
| 17 | Counter nut | 5,6 Gal. / 1.4301. |
| 16 | Bowl washer | 50 Cr V 4 / 1.4301. |
| 15 | Pressure ring | MS 58 / 1.4301. - 1.4401. |
| 14 | Spindle o-ring | VITON / VITON |
| 13 | Neck tightness element | PTFE-Teflon / PTFE-Teflon |
| 12 | VITON / VITON | |
| 11 | Body tightness element | PTFE-Teflon / PTFE-Teflon |
| 10 | Ball tightness element | PTFE-Teflon / PTFE-Teflon |
| 9 | Action spindle | 1,4021 / 1.4301. - 1.4401. |
| 8 | Ball | 1.4301 / 1.4086 / 1.4305. - 1.4401. |
| 7 | st 37-2 / 1.4301. - 1.4401. | |
| 6 | st 37-2 / 1.4301. - 1.4401. | |
| 5 | st 37-2 / 1.4301. - 1.4401. | |
| 4 | Cover 3 way | st 37-2 / 1.4301. - 1.4401. |
| 3 | Cover | st 37-2 / 1.4301. - 1.4401. |
| 2 | Neck | St 37-2 / 1.4301. - 1.4401. |
| 1 | Body | St 44 / 1.4301. - 1.4401. |

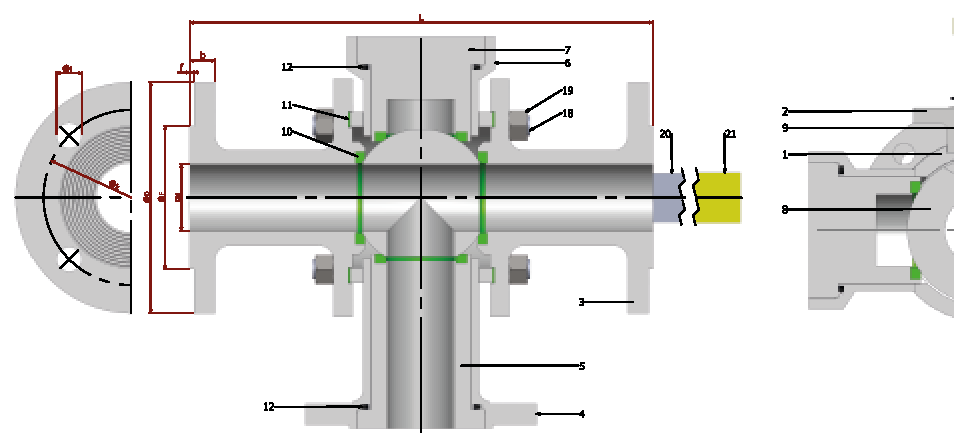

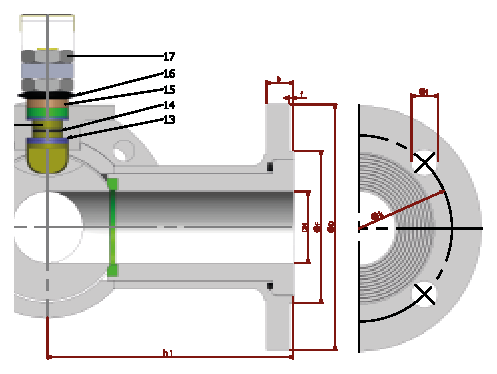

Dimensions and connection sizes
| DN | Size | L | G | H | h1 | f | PN 16 | PN 40 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | b | k | Hole unit | I | F | Kg | D | b | k | Hole unit | I | F | Kg | |||||||
| DN 15 | 1/2" | 160 | 180 | 90 | 80 | 2 | 95 | 14 | 65 | 4 | 14 | 45 | — | 95 | 16 | 65 | 4 | 14 | 45 | — |
| DN 20 | 3/4" | 200 | 180 | 92 | 100 | 2 | 105 | 16 | 75 | 4 | 14 | 58 | — | 105 | 18 | 75 | 4 | 14 | 58 | — |
| DN 25 | 1" | 210 | 275 | 115 | 105 | 2 | 115 | 16 | 85 | 4 | 14 | 68 | — | 115 | 18 | 85 | 4 | 14 | 68 | — |
| DN 32 | 1 1/4" | 230 | 275 | 115 | 115 | 2 | 140 | 16 | 100 | 4 | 18 | 78 | — | 140 | 18 | 100 | 4 | 18 | 78 | — |
| DN 40 | 1 1/2" | 250 | 275 | 120 | 125 | 3 | 150 | 16 | 110 | 4 | 18 | 88 | — | 150 | 18 | 110 | 4 | 18 | 88 | — |
| DN 50 | 2" | 330 | 320 | 135 | 165 | 3 | 165 | 18 | 125 | 4 | 18 | 102 | — | 165 | 20 | 125 | 4 | 18 | 102 | — |
| DN 65 | 2 1/2" | 400 | 380 | 150 | 200 | 3 | 185 | 18 | 145 | 4 | 18 | 122 | — | 185 | 22 | 145 | 8 | 18 | 122 | — |
| DN 80 | 3" | 430 | 450 | 170 | 215 | 3 | 200 | 20 | 160 | 8 | 18 | 138 | — | 200 | 24 | 160 | 8 | 18 | 138 | — |
| DN 100 | 4" | 450 | 450 | 170 | 225 | 3 | 220 | 20 | 180 | 8 | 18 | 158 | — | 235 | 24 | 190 | 8 | 22 | 162 | — |
