PN 16/40 Reduction Bore/Threaded (Steel)

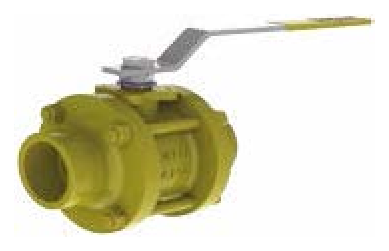

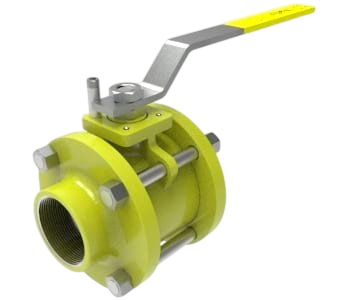

PN 16/40 natural gas ball valve for R 1/2″ to R 2″ lines, type BDKV-Dİ-RG, reduced bore and threaded, in steel. Built to TS EN 331. See all natural gas ball valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Natural gas ball valve |
|---|---|
| Type code | BDKV-Dİ-RG |
| Size range | R 1/2" – R 2" |
| Body | Steel |
| Connection | Reduced bore / Threaded |
| Dimensions | TS EN 331 |
| Connections | EN 10226-1 |
| Working pressure | PN 16 - 40 |
| Working temperature | −30 °C / +180 °C |
| Usage areas | Natural gas, LPG-LNG, fuel-oil, pressurized air and other gases etc. |

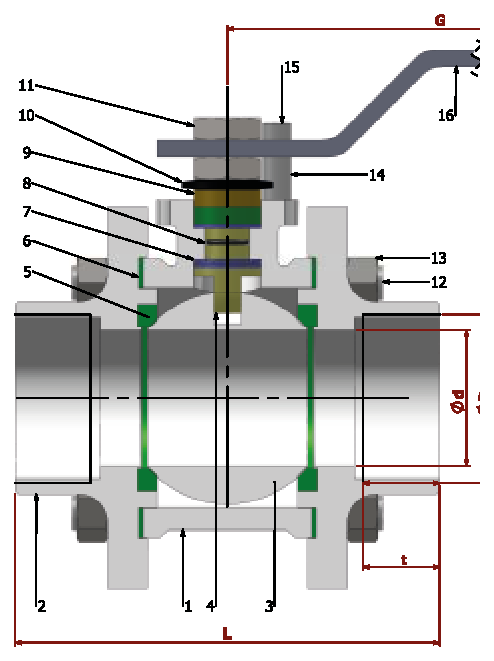

Parts list
| No | Item description | Material |
|---|---|---|
| 17 | Plastic covering | PVC / PVC |
| 16 | Ball action handle | st 37 / 1.4301. |
| 15 | Bolt | ST 42 Gal. / 1.4301. - 1.4401. |
| 14 | Stopping pin | ST 42 Gal. / 1.4301. |
| 13 | Nut | 5.6. / 1.4301. - 1.4401. |
| 12 | Stopping pin | CK 35 / CK 45 / 1.4301. |
| 11 | Counter nut | 5,6 Gal. / 1.4301. |
| 10 | Bowl washer | 50 Cr V 4 / 1.4301. |
| 9 | Pressure ring | MS 58 / 1.4301. - 1.4401. |
| 8 | Spindle o-ring | VITON / VITON |
| 7 | Neck tightness element | PTFE-Teflon / PTFE-Teflon |
| 6 | Body tightness element | PTFE-Teflon / PTFE-Teflon |
| 5 | Ball tightness element | PTFE-Teflon / PTFE-Teflon |
| 4 | Action spindle | 1,4021 / 1.4301. - 1.4401. |
| 3 | Ball | 1.4301 / 1.4086 / 1.4305. - 1.4401. |
| 2 | Cover | A 216 WCB / 1.4301. - 1.4401. |
| 1 | Body | A 216 WCB / 1.4301. - 1.4401. |
Dimensions and connection sizes
| DN | Size | L | G | H | d | D | t | PN 16 | PN 40 |
|---|---|---|---|---|---|---|---|---|---|
| Kg | Kg | ||||||||
| DN 15 | 1/2" | 75 | 150 | 75 | 12 | 1/2" | 14 | 1,00 | 1,10 |
| DN 20 | 3/4" | 80 | 150 | 83 | 15 | 3/4" | 17 | 1,20 | 1,40 |
| DN 25 | 1" | 90 | 180 | 90 | 20 | 1" | 20 | 1,90 | 2,00 |
| DN 32 | 1 1/4" | 110 | 230 | 95 | 20 | 11/4" | 22 | 2,50 | 2,90 |
| DN 40 | 1 1/2" | 120 | 275 | 115 | 32 | 11/2" | 25 | 3,20 | 3,70 |
| DN 50 | 2" | 140 | 275 | 120 | 40 | 2" | 28 | 5,20 | 5,80 |
