ANSI Class 150 DBB Ball Valve — Full Bore, Flanged Ends
This ANSI Class 150 DBB ball valve is a double block and bleed ball valve for DN 15 to DN 100 lines, full bore with flanged ends, rated CLASS 150 (PN 20). It is designed to API 6D / ISO 14313, with dimensions to ASME B 16.10 and connections to ASME B 16.5, for a working temperature of −29 °C to +180 °C. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Ball valve, double block and bleed (DBB) |
|---|---|
| Size range | DN 15 – DN 100 |
| Bore / connection | Full bore / flanged |
| Design | API 6D / ISO 14313 |
| Dimensions | ASME B 16.10 |
| Connections | ASME B 16.5 |
| Working pressure | CLASS 150 (PN 20) |
| Working temperature | −29 °C / +180 °C |

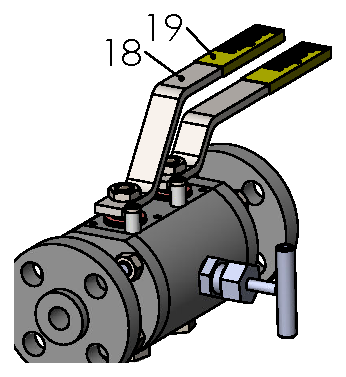

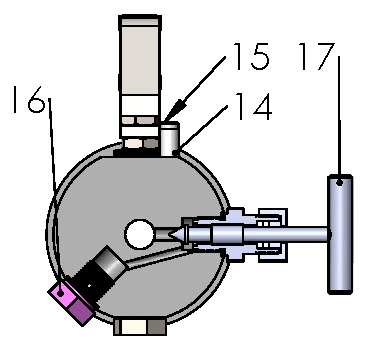

Parts list
| No | Item description | Material |
|---|---|---|
| 19 | Plastic covering | PVC |
| 18 | Ball action handle | ST 37 |
| 17 | Needle valve | AISI 304 |
| 16 | Vent | AISI 304 |
| 15 | Bolt | ST 42 |
| 14 | Stopping pin | ST 42 |
| 13 | Nut | 5.6 |
| 12 | Stud | 4140-5140 |
| 11 | Counter nut | AISI 304 |
| 10 | Bowl washer | AISI 304 |
| 9 | Pressure ring | AISI 304 |
| 8 | Spindle O-ring | VITON |
| 7 | Neck tightness element | PTFE |
| 6 | Body tightness O-ring | VITON |
| 5 | Ball tightness element | PTFE |
| 4 | Action spindle | ASTM A 105 |
| 3 | Ball | AISI 316 |
| 2 | Cover | ASTM A 105 |
| 1 | Body | ASTM A 105 |

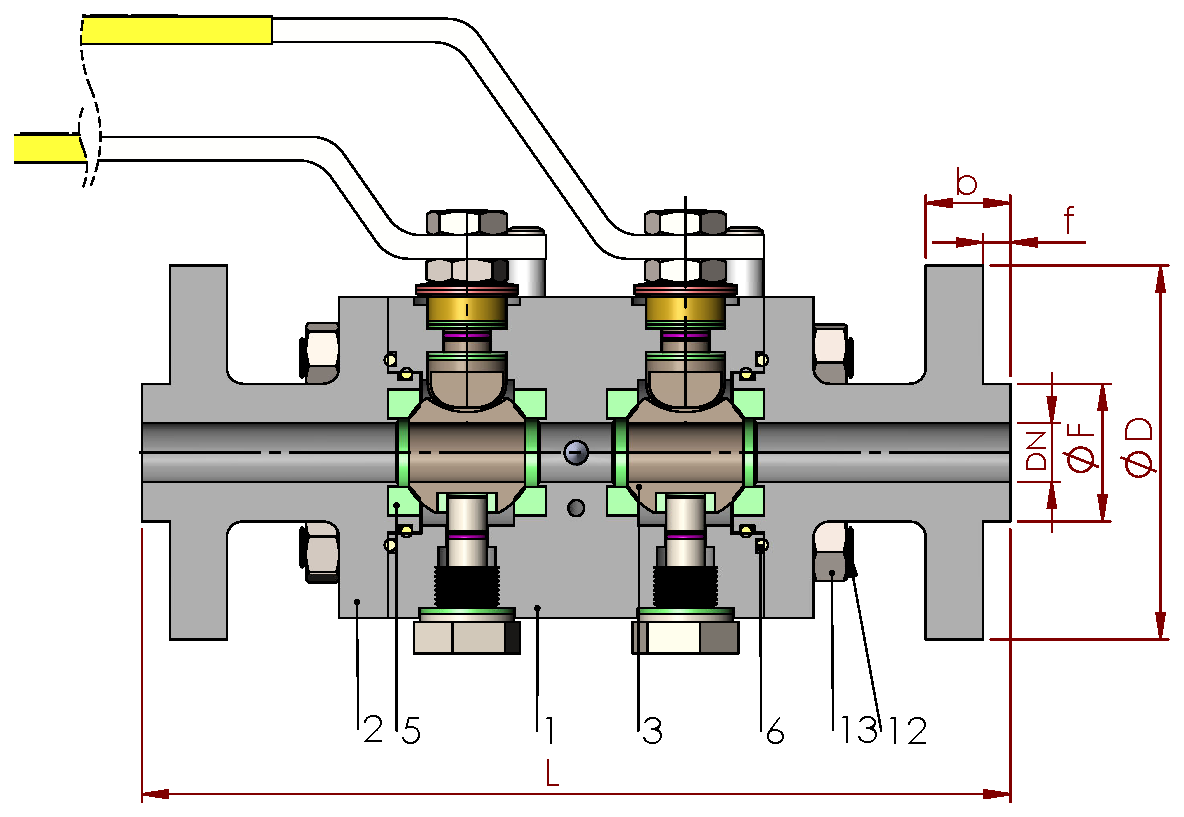

Dimensions and connection sizes
| DN | Size | L | b | f | Ø D | Ø K | Ø F | Ø I | Holes |
|---|---|---|---|---|---|---|---|---|---|
| DN 15 | R 1/2" | 208 | 11.2 | 2 | 90 | 60 | 35.1 | 16 | 4 |
| DN 20 | R 3/4" | 215 | 12.7 | 2 | 100 | 70 | 42.9 | 16 | 4 |
| DN 25 | R 1" | 230 | 14.3 | 2 | 110 | 79.4 | 50.8 | 16 | 4 |
| DN 40 | R 1-1/2" | 282 | 17.5 | 2 | 125 | 98.4 | 73.2 | 16 | 4 |
| DN 50 | R 2" | 330 | 19.1 | 2 | 150 | 120.6 | 91.9 | 19 | 4 |
| DN 80 | R 3" | 390 | 23.9 | 2 | 190 | 152.4 | 127 | 19 | 4 |
| DN 100 | R 4" | 440 | 23.9 | 2 | 230 | 190.5 | 157.2 | 19 | 8 |
