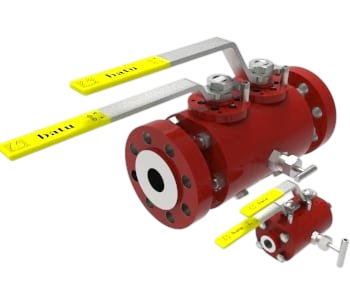

ANSI Class 600 DBB Ball Valve — Full Bore, Flanged

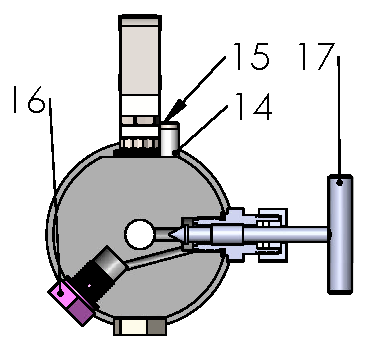

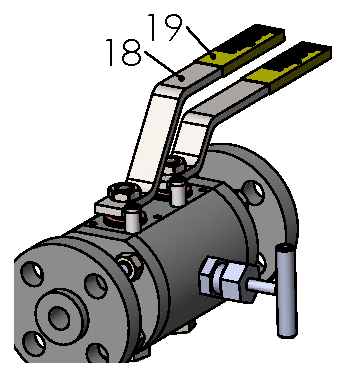

This ANSI Class 600 DBB ball valve is a double block and bleed ball valve for DN 15 to DN 100 lines, full bore with flanged ends, rated CLASS 600 (PN 100). It is designed to API 6D / ISO 14313, with dimensions to ASME B 16.10 and connections to ASME B 16.5, for a working temperature of −29 °C to +180 °C. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Ball valve, double block and bleed (DBB) |
|---|---|
| Size range | DN 15 – DN 100 |
| Bore / connection | Full bore / flanged |
| Design | API 6D / ISO 14313 |
| Dimensions | ASME B 16.10 |
| Connections | ASME B 16.5 |
| Working pressure | CLASS 600 (PN 100) |
| Working temperature | −29 °C / +180 °C |
Parts list
| No | Item description | Material |
|---|---|---|
| 19 | Plastic covering | PVC |
| 18 | Ball action handle | ST 37 |
| 17 | Needle valve | AISI 304 |
| 16 | Vent | AISI 304 |
| 15 | Bolt | ST 42 |
| 14 | Stopping pin | ST 42 |
| 13 | Nut | 5.6 |
| 12 | Stud | 4140-5140 |
| 11 | Counter nut | AISI 304 |
| 10 | Bowl washer | AISI 304 |
| 9 | Pressure ring | AISI 304 |
| 8 | Spindle O-ring | VITON |
| 7 | Neck tightness element | PTFE |
| 6 | Body tightness O-ring | VITON |
| 5 | Ball tightness element | PTFE |
| 4 | Action spindle | ASTM A 105 |
| 3 | Ball | AISI 316 |
| 2 | Cover | ASTM A 105 |
| 1 | Body | ASTM A 105 |

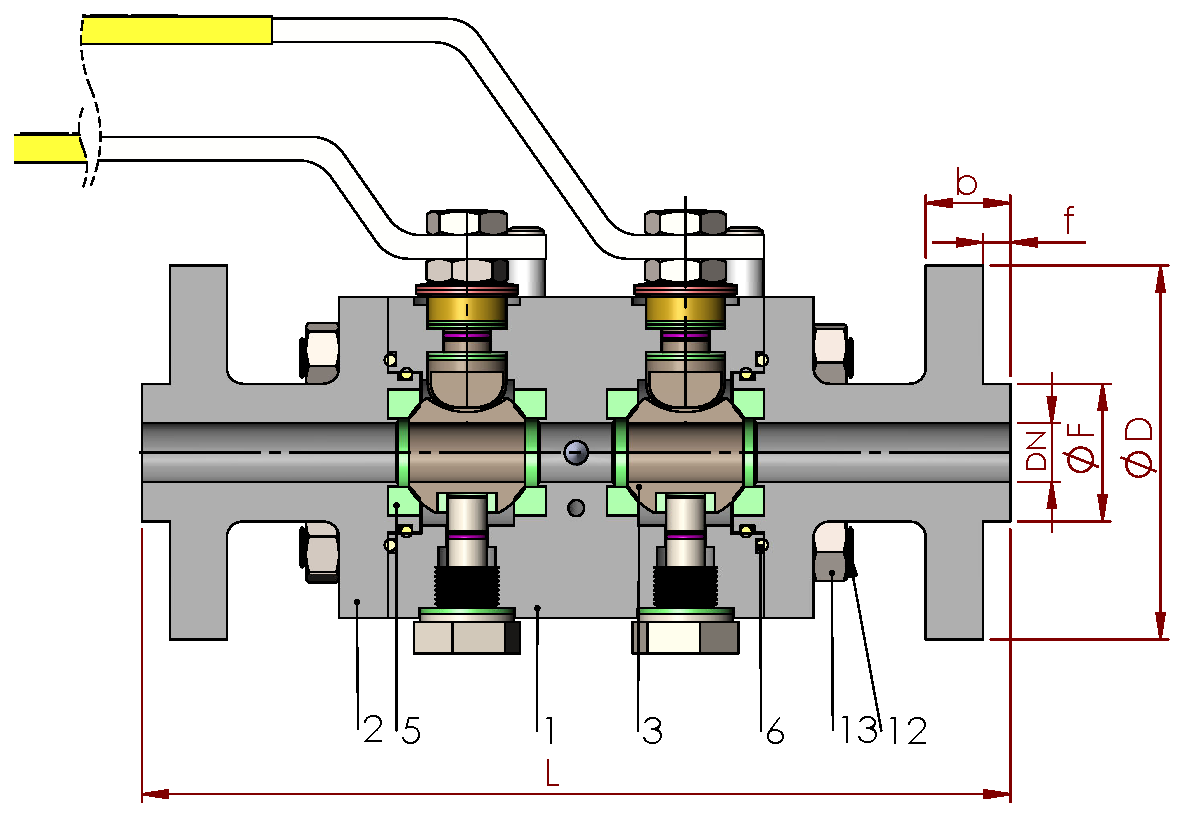

Dimensions and connection sizes
| DN | Size | L | b | f | Ø D | Ø K | Ø F | Ø I | Holes |
|---|---|---|---|---|---|---|---|---|---|
| DN 15 | R 1/2" | 228 | 21.3 | 7 | 95 | 66.7 | 35.1 | 15.9 | 4 |
| DN 20 | R 3/4" | 234 | 22.9 | 7 | 115 | 82.6 | 42.9 | 19.1 | 4 |
| DN 25 | R 1" | 252 | 24.5 | 7 | 125 | 88.9 | 50.8 | 19.1 | 4 |
| DN 40 | R 1-1/2" | 325 | 29.3 | 7 | 155 | 114.3 | 73.2 | 22.4 | 4 |
| DN 50 | R 2" | 353 | 32.4 | 7 | 165 | 127 | 91.9 | 19.1 | 8 |
| DN 80 | R 3" | 462 | 38.8 | 7 | 210 | 168.3 | 127 | 22.4 | 8 |
| DN 100 | R 4" | 697 | 45.1 | 7 | 275 | 215.9 | 157.2 | 25.4 | 8 |
