Up to 8″ ANSI CLASS 2500 High Pressure Wafer Ball Valve, Full Bore/Flanged (Steel)

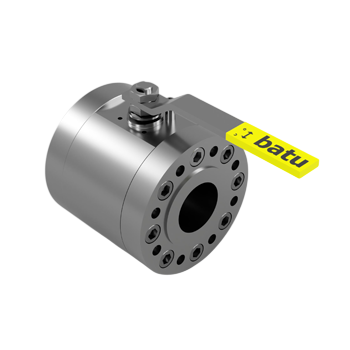

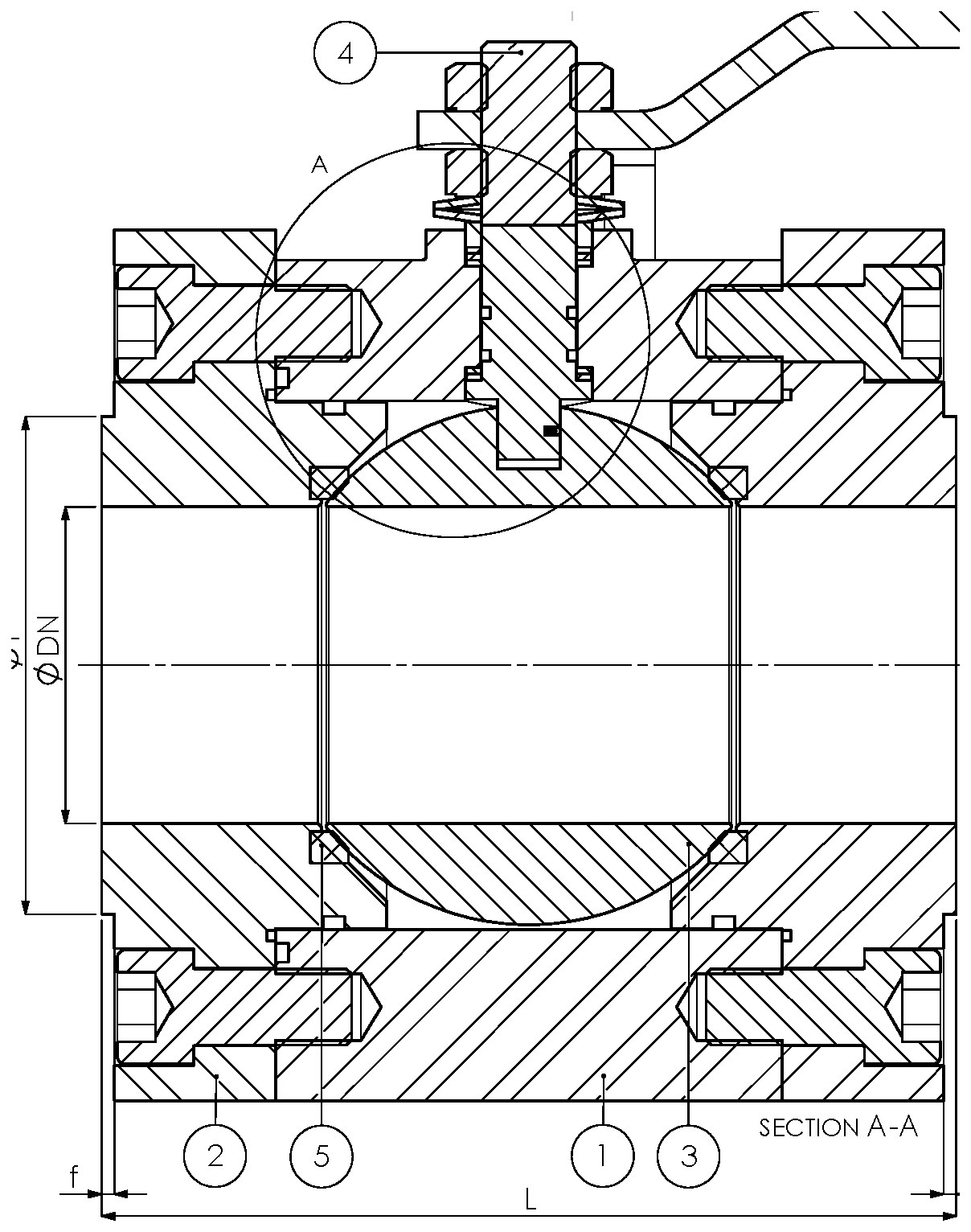

Up to 8″ ANSI CLASS 2500 high pressure wafer ball valve for 2″ to 8″ lines, drawing KK-F-040/1, full bore and flanged, with body and cover in ASTM A105. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | High pressure wafer ball valve |
|---|---|
| Class | 2500 |
| Size range | 2" – 8" |
| Bore / connection | Full bore / flanged |
| Body | Steel |
| Drawing no | KK-F-040/1 |
Parts list
| No | Item description | Material |
|---|---|---|
| 17 | Lever | ST 37 |
| 16 | Antistatic ball | 1,4301 |
| 15 | Antistatic spring | 1,4301 |
| 14 | Counter nut | 5,6 Gal. |
| 13 | Spring washer | 50 Cr V 4 |
| 12 | Pressure ring | MS 58 |
| 11 | Stem seal | VITON |
| 10 | Stem packing | GRAPHITE |
| 9 | Stem packing | PTFE |
| 8 | Cover seal | GRAPHITE |
| 7 | Cover seal | VITON |
| 6 | Body seal | VITON |
| 5 | Seat | DELRIN |
| 4 | Stem | SS420 / 17-4PH |
| 3 | Ball | SS420 / ASTM A105+ENP |
| 2 | Cover | ASTM A105 |
| 1 | Body | ASTM A105 |

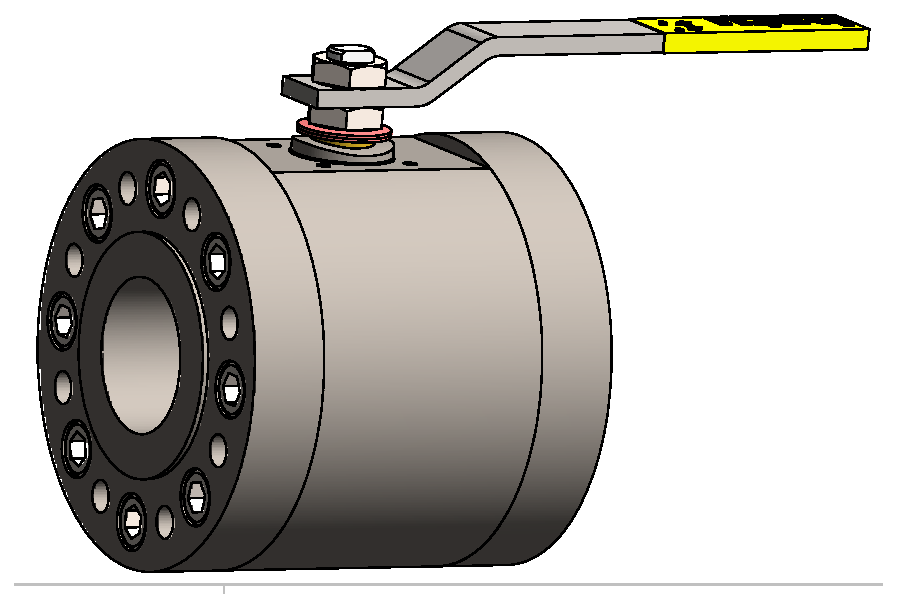

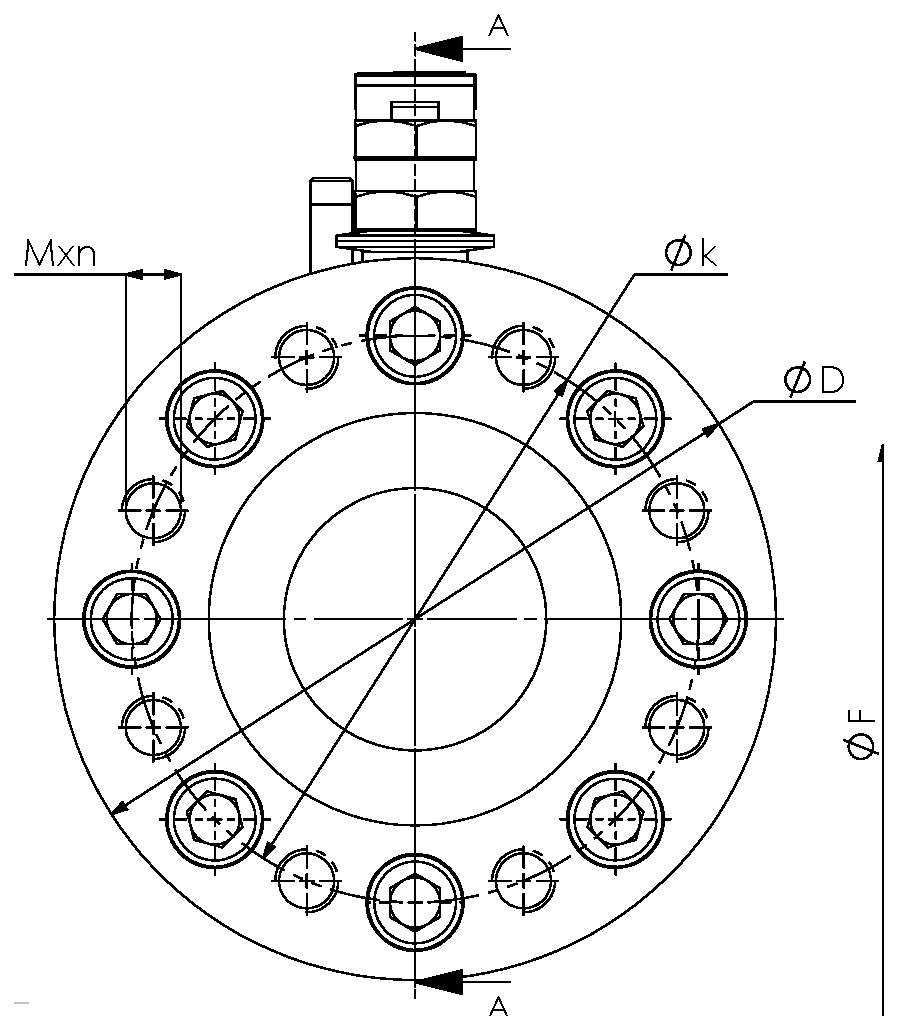

Dimensions and connection sizes
| CLASS | SIZE | ØDN | L | ØD | f | Øk | Mxn | ØF |
|---|---|---|---|---|---|---|---|---|
| 2500 | 2" | 42 | 225 | 215 | 6,4 | 171,4 | M27x8 | 91,9 |
| 2500 | 3" | 62 | 300 | 270 | 6,4 | 228,6 | M33x8 | 127 |
| 2500 | 4" | 87 | 330 | 315 | 6,4 | 273 | M39x8 | 157,2 |
| 2500 | 6" | 131 | 430 | 397 | 6,4 | 368,3 | M52x8 | 215,9 |
| 2500 | 8" | 179 | 490 | 555 | 6,4 | 438,2 | M52x12 | 269,7 |
