PN 16/40 Jacket Full Bore/Flanged (Steel)

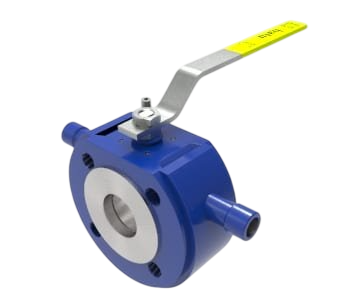

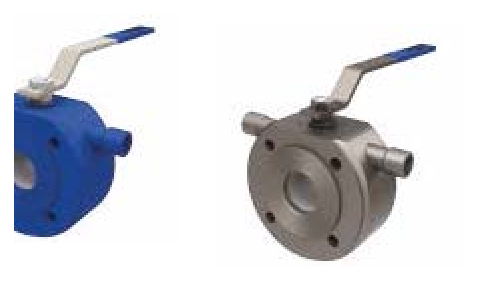

PN 16/40 jacketed Burak type monoblock ball valve for DN 15 to DN 150 lines, type BBTKV-CK, full bore. Built to EN 1092. See all burak type wafer mono-block ball valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Burak type monoblock ball valve jacket |
|---|---|
| Type code | BBTKV-CK |
| Size range | DN 15 – DN 150 |
| Connection | Full bore |
| Dimensions | BATU ÖZEL |
| Connections | EN 1092 |
| Working pressure | PN 16 - 40 |
| Working temperature | +180 °C |
| Usage areas | Asphalt, food and chemical industry |

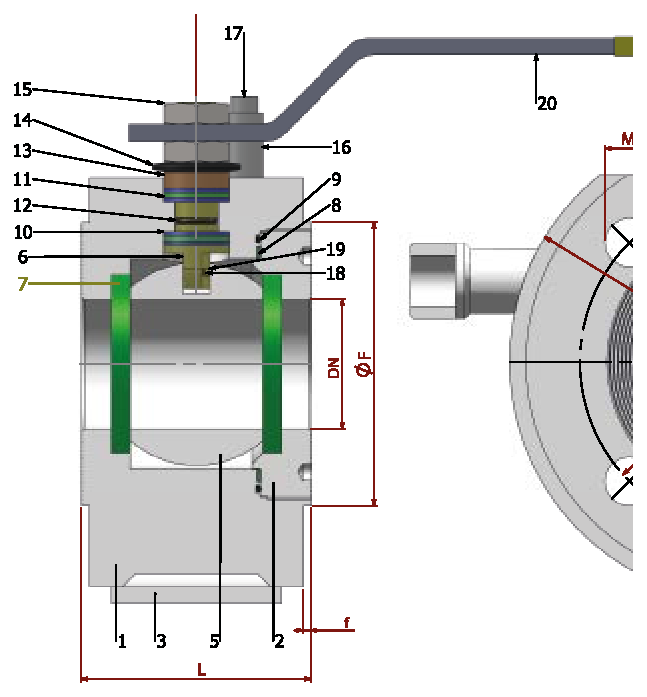

Parts list
| No | Item description | Material |
|---|---|---|
| 21 | Plastic covering | PVC / PVC |
| 20 | Ball action handle | st 37 / 1.4301. |
| 19 | Antistatic ball | 1.4301. / 1.4301 / 1.4086 |
| 18 | Antistatic spring | 1.4301. / 1.4301 / 1.4086 |
| 17 | Bolt | ST 42 Gal. / 1.4301 / 1.4086 |
| 16 | Stopping pin | ST 42 Gal. / 1.4301. |
| 15 | Counter nut | 5,6 Gal. / 1.4301. |
| 14 | Bowl washer | 50 Cr V 4 / 1.4301. |
| 13 | Pressure ring | MS 58 / 1.4301. - 1.4401 |
| 12 | Spindle o-ring | VITON / VITON |
| 11 | Burgman graphite o-ring | EN 1514-1 / EN 1514-1 |
| 10 | Neck tightness element | PTFE-Teflon / PTFE-Teflon |
| 9 | Body o-ring | VITON / VITON |
| 8 | Body tightness element | PTFE-Teflon / PTFE-Teflon |
| 7 | Ball tightness element | PTFE-Teflon / PTFE-Teflon |
| 6 | Action spindle | 1,4021 / 1.4301. - 1.4401 |
| 5 | Ball | 1.4301 / 1.4086 / 1.4305. - 1.4401 |
| 4 | Muff | ST 37-2 / 1.4301. - 1.4401 |
| 3 | Jacket | ST 37-2 / 1.4301. - 1.4401 |
| 2 | Cover | ASTM A 105 / 1.4301. - 1.4401 |
| 1 | Body | ASTM A 105 / 1.4301. - 1.4401 |

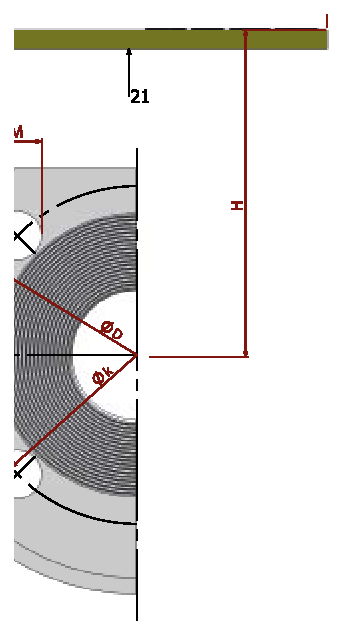

Dimensions and connection sizes
| DN | Size | L | G | H | f | R | D | PN 16 | PN 40 | Kg | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| k | Hole unit | M | F | k | Hole unit | M | F | |||||||||
| DN 15 | 1/2" | 38 | 150 | 75 | 2 | 1/2" | 105 | 65 | 4 | M 12 | 50 | 65 | 4 | M 12 | 50 | |
| DN 20 | 3/4" | 40 | 150 | 83 | 2 | 1/2" | 115 | 75 | 4 | M 12 | 60 | 75 | 4 | M 12 | 60 | |
| DN 25 | 1" | 45 | 180 | 90 | 2 | 1/2" | 130 | 85 | 4 | M 12 | 68 | 85 | 4 | M 12 | 68 | |
| DN 32 | 1 1/4" | 58 | 230 | 95 | 2 | 1/2" | 157 | 100 | 4 | M 16 | 78 | 100 | 4 | M 16 | 78 | |
| DN 40 | 1 1/2" | 64 | 275 | 115 | 3 | 1/2" | 157 | 110 | 4 | M 16 | 88 | 110 | 4 | M 16 | 88 | |
| DN 50 | 2" | 82 | 275 | 120 | 3 | 1/2" | 177 | 125 | 4 | M 16 | 105 | 125 | 4 | M 16 | 105 | |
| DN 65 | 2 1/2" | 103 | 320 | 135 | 3 | 1/2" | 190 | 145 | 4 | M 16 | 125 | 145 | 8 | M 16 | 125 | |
| DN 80 | 3" | 122 | 380 | 150 | 3 | 1/2" | 210 | 160 | 8 | M 16 | 132 | 160 | 8 | M 16 | 132 | |
| DN 100 | 4" | 150 | 450 | 170 | 3 | 1/2" | 250 | 180 | 8 | M 16 | 158 | 190 | 8 | M 20 | 162 | |
| DN 125 | 5" | 200 | 450 | 200 | 3 | 1/2" | 270 | 210 | 8 | M 16 | 188 | 220 | 8 | M 20 | 188 | |
| DN 150 | 6" | 235 | 650 | 235 | 3 | 1/2" | 305 | 240 | 8 | M 20 | 212 | 250 | 8 | M 22 | 218 | |
