ANSI CLASS 300 – Full Bore / Butt Welded (Steel)
ANSI CLASS 300 API 6D fully welded ball valve for DN 50 to DN 150 lines, type BKV-FW-BW-TG, full bore with butt welded ends, in steel. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Fully welded ball valve |
|---|---|
| Type code | BKV-FW-BW-TG |
| Size range | DN 50 – DN 150 |
| Body | Steel |
| Connection | Full bore / Butt welded |
| Dimensions | ASME B 16.10 (2" - 6") |
| Connections | ASME B 16.25 |
| Working pressure | CLASS 300 (PN 50) |
| Working temperature | −29 °C / +180 °C |
| Usage areas | Natural gas, LPG-LNG, fuel-oil, pressurized air and other gases etc. |

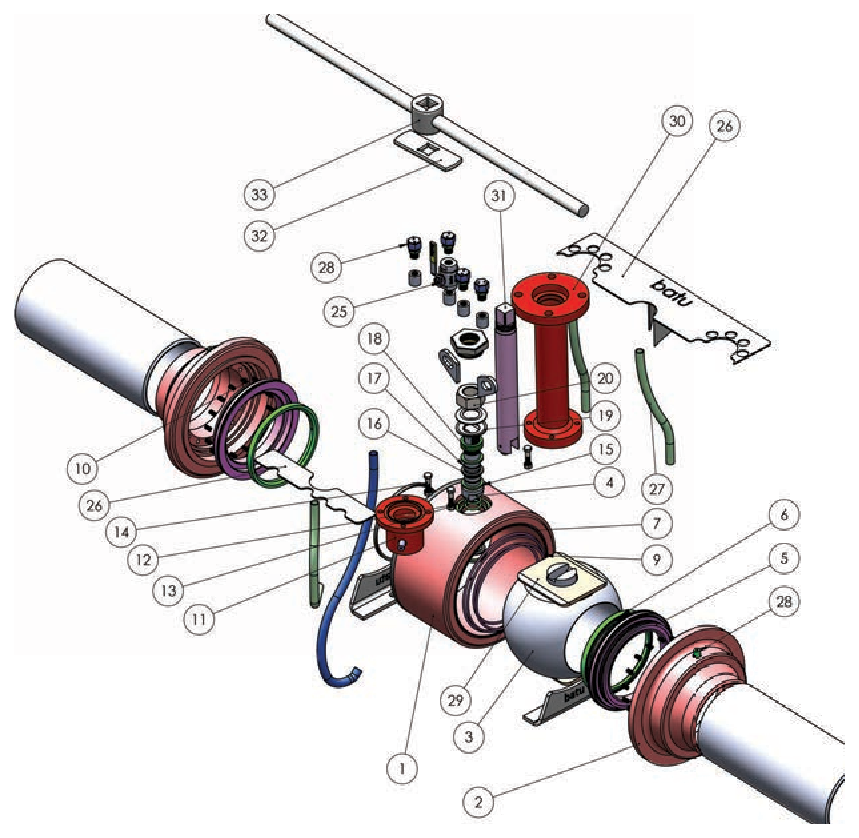

Parts list
| No | Item description | Material |
|---|---|---|
| 33 | T-key | |
| 32 | Stopping part | |
| 31 | Gear box adaptor spindle | 4140 - 5140 |
| 30 | Gear box adaptor | ST 37-2 |
| 29 | Ball support | ST 37-2 |
| 28 | Grease injector | VITON |
| 27 | Pipes | ST 37-2 |
| 26 | Pipe sheet | ST 37-2 |
| 25 | Valve | |
| 21 | Stud | 4140 - 5140 / 1.4301. |
| 20 | Counter nut | 5,6 Gal. / 1.4301. |
| 19 | Bowl washer | 50 Cr V 4 / 1.4301. |
| 18 | Pressure ring | st 37 / 1.4301. - 1.4401. |
| 17 | Spindle o-ring | VITON |
| 16 | Burgman graphite o-ring | EN 1514-1 |
| 15 | Neck tightness element | PTFE-Teflon |
| 14 | Neck bolt | ST 42 Gal. / 1.4301. - 1.4401. |
| 13 | Neck o-ring | VITON |
| 12 | Neck tightness element | PTFE-Teflon |
| 11 | Neck | A 216 WCB / A 105 / 1.4301. - 1.4401. |
| 10 | Spring | 1.4301. |
| 9 | Seat ring o-ring | VITON |
| 8 | Cover o-ring | VITON |
| 7 | Body o-ring | VITON |
| 6 | Ball tightness element | PTFE-Teflon |
| 5 | Seat ring | A 105 |
| 4 | Action spindle | SS 420 |
| 3 | Ball | A 105 ENP |
| 2 | Cover | A 105 |
| 1 | Body | A 105 |

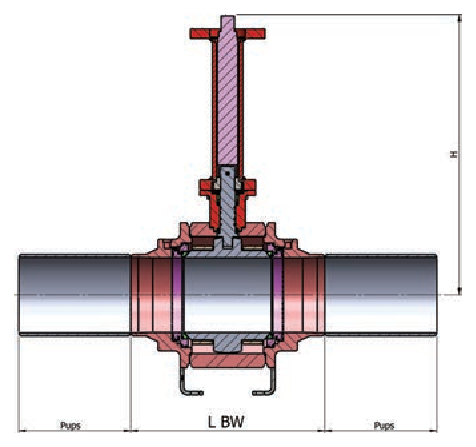

Dimensions and connection sizes
| ANSI 150 | D | L BW | H | Pups |
|---|---|---|---|---|
| 2" | 50 | 216 | 800-1200 | 300 |
| 3" | 80 | 283 | 800-1200 | 300 |
| 4" | 100 | 305 | 800-1200 | 300 |
| 6" | 150 | 457 | 800-1200 | 300 |
