Up to 16″ ANSI CLASS 300, High Pressure Wafer Ball Valve Full Bore/Flanged (Steel)

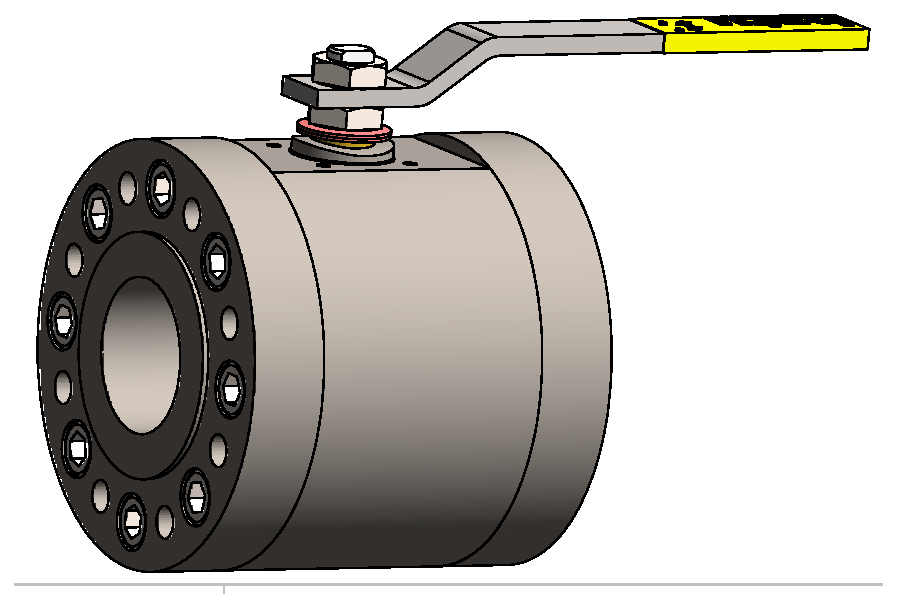

Up to 16″ ANSI CLASS 300 high pressure wafer ball valve for 1/2″ to 16″ lines, drawing KK-F-040/1, full bore and flanged, with body and cover in ASTM A105. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | High pressure wafer ball valve |
|---|---|
| Class | 300 |
| Size range | 1/2" – 16" |
| Bore / connection | Full bore / flanged |
| Body | Steel |
| Drawing no | KK-F-040/1 |

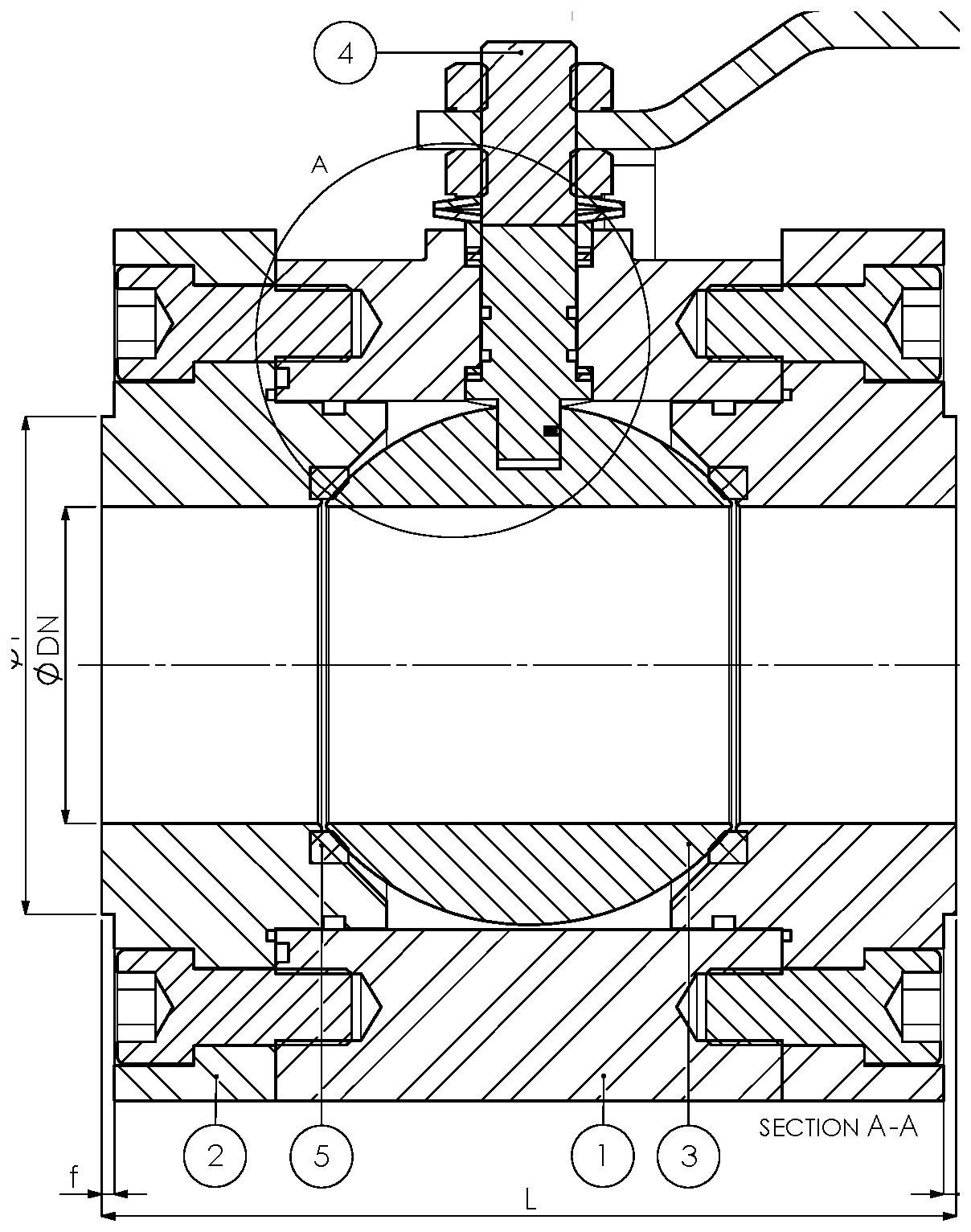

Parts list
| No | Item description | Material |
|---|---|---|
| 17 | Lever | ST 37 |
| 16 | Antistatic ball | 1,4301 |
| 15 | Antistatic spring | 1,4301 |
| 14 | Counter nut | 5,6 Gal. |
| 13 | Spring washer | 50 Cr V 4 |
| 12 | Pressure ring | MS 58 |
| 11 | Stem seal | VITON |
| 10 | Stem packing | GRAPHITE |
| 9 | Stem packing | PTFE |
| 8 | Cover seal | GRAPHITE |
| 7 | Cover seal | VITON |
| 6 | Body seal | VITON |
| 5 | Seat | DELRIN |
| 4 | Stem | SS420 / 17-4PH |
| 3 | Ball | SS420 / ASTM A105+ENP |
| 2 | Cover | ASTM A105 |
| 1 | Body | ASTM A105 |

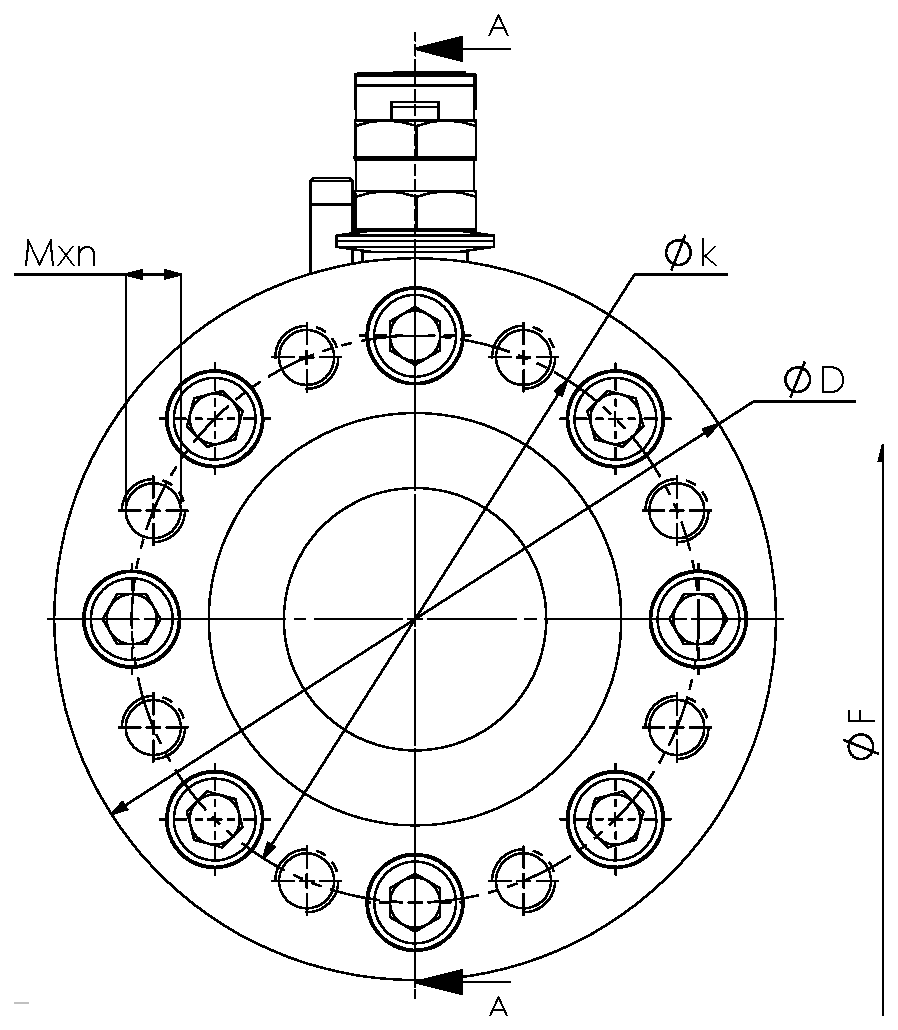

Dimensions and connection sizes
| CLASS | SIZE | ØDN | L | ØD | f | Øk | Mxn | ØF |
|---|---|---|---|---|---|---|---|---|
| 300 | 1/2" | 12,7 | 38 | 90 | 1,5 | 66,5 | M14x4 | 35,1 |
| 300 | 3/4" | 19 | 40 | 109 | 1,5 | 82,6 | M16X4 | 42,9 |
| 300 | 1" | 25 | 45 | 115 | 1,5 | 88,9 | M16X4 | 50,8 |
| 300 | 1-1/4" | 31,8 | 58 | 118 | 1,5 | 98,6 | M16X4 | 63,5 |
| 300 | 1-1/2" | 38 | 64 | 148 | 1,5 | 114,3 | M20x4 | 73 |
| 300 | 2" | 49 | 82 | 158 | 1,5 | 127 | M16X8 | 91,9 |
| 300 | 2-1/2" | 62 | 103 | 177 | 1,5 | 149,4 | M20x8 | 104,6 |
| 300 | 3" | 74 | 122 | 207 | 1,5 | 168,1 | M20x8 | 127 |
| 300 | 4" | 100 | 150 | 248 | 1,5 | 200,2 | M20x8 | 157,2 |
| 300 | 5" | 125 | 200 | 270 | 1,5 | 235 | M20x8 | 185,7 |
| 300 | 6" | 150 | 235 | 320 | 1,5 | 269,7 | M20x12 | 215,9 |
| 300 | 8" | 201 | 310 | 405 | 1,5 | 330,2 | M24x12 | 269,7 |
| 300 | 10" | 252 | 350 | 495 | 1,5 | 387,4 | M27x16 | 323,8 |
| 300 | 12" | 303 | 420 | 590 | 1,5 | 450,8 | M30x16 | 381 |
| 300 | 14" | 334 | 460 | 645 | 1,5 | 514,4 | M30x20 | 412,8 |
| 300 | 16" | 385 | 530 | 730 | 1,5 | 571,5 | M33x20 | 469,9 |
