Pig Ball Valve Sample Datasheet

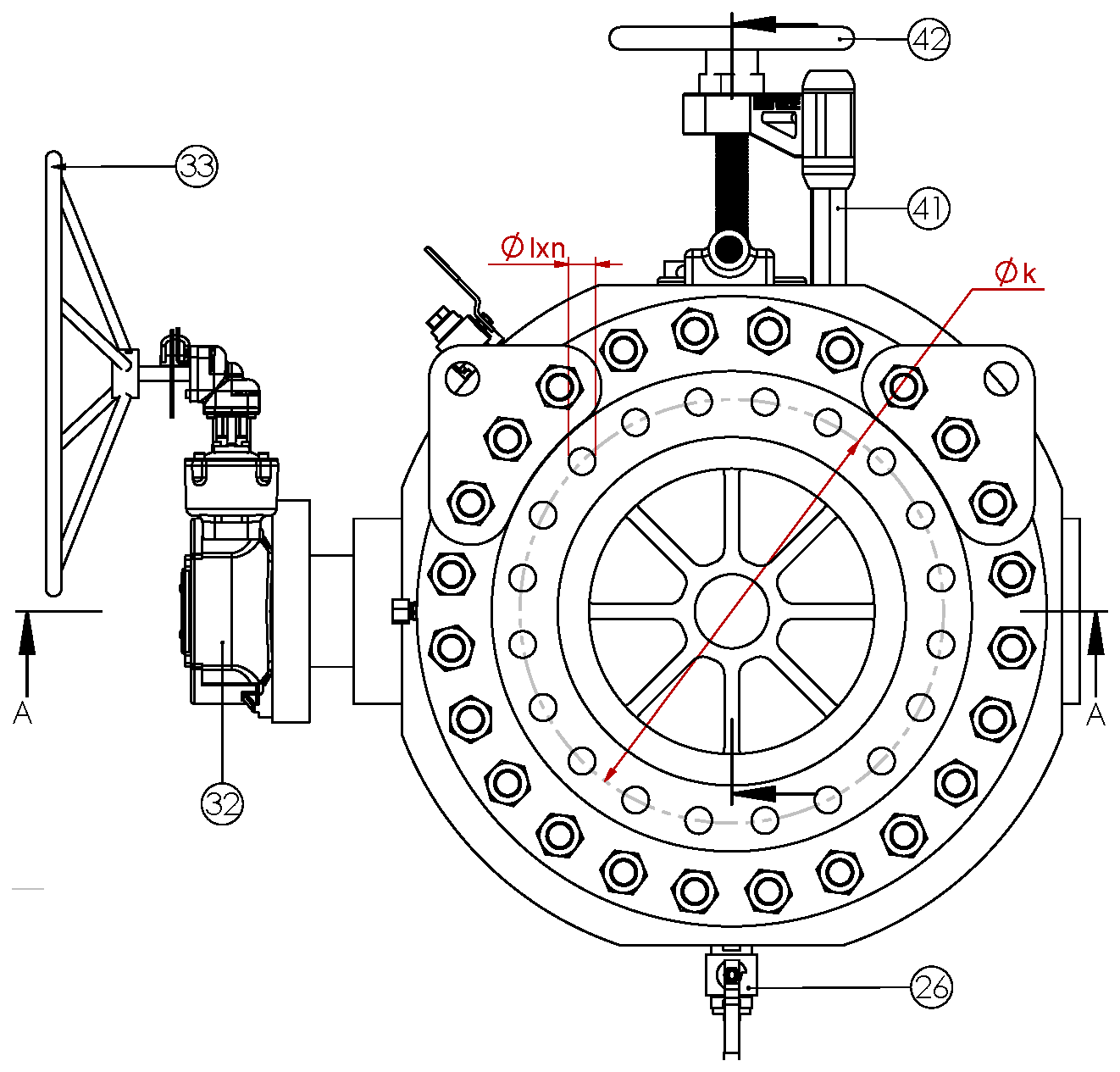

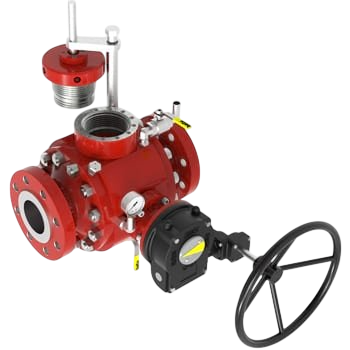

CLASS 300 16″ and CLASS 900 8″ pig launcher and receiver ball valve, drawing KK-F-040/2, with quick opening closure and lockable system, and body and cover in ASTM A350 LF2. The tables below are the data sheet itself: the specification, the bill of materials, the dimensions and connection sizes, and the pig sizes the valve is drawn for.
Specifications
| Type | Pig launcher and receiver ball valve |
|---|---|
| Drawing no | KK-F-040/2 |
| Class and size | CLASS 300 — 16" · CLASS 900 — 8" |
| Working pressure | CLASS 300: −46 / +38 °C 50 Bar · Max. 180 °C 40 Bar — CLASS 900: −46 / +38 °C 150 Bar · Max. 180 °C 110 Bar |
| Test pressure | CLASS 300: Shell 75 Bar · Closure 55 Bar · Gas 6 Bar — CLASS 900: Shell 225 Bar · Closure 165 Bar · Gas 6 Bar |
| Approximate valve weight | CLASS 300 — 16": 3500 kg · CLASS 900 — 8": 1500 kg |
| Bolt and nut coating | Xylan fluorocarbon |

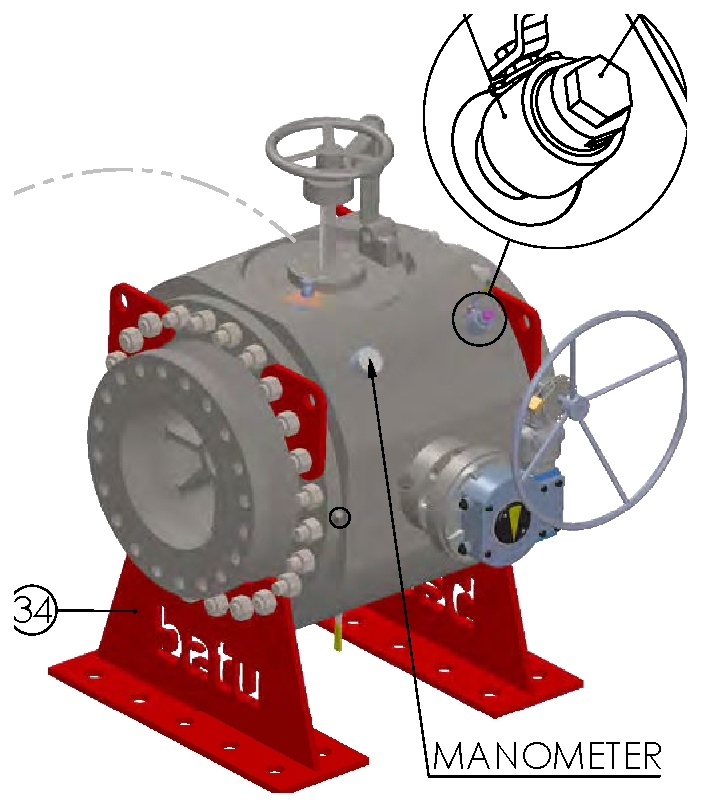

Bill of materials
| No | Item description | Material |
|---|---|---|
| 42 | Hand wheel | CARBON STEEL |
| 41 | Bearing post | ASTM A350 LF2 |
| 40 | Lever connection part | ASTM A350 LF2 |
| 39 | Buttress gear stem | SS 420 |
| 38 | Buttress gear stem part | ASTM A350 LF2 |
| 37 | Pig bonnet | ASTM A350 LF2 |
| 36 | Pig cover seal | VITON |
| 35 | Pig cover | ASTM A350 LF2 |
| 34 | Support leg | CARBON STEEL |
| 33 | Wheel | CARBON STEEL |
| 32 | Gear op. | ROTORK AB 1950/PR4 |
| 31 | Dry bearing | BRONZE |
| 30 | Greaser | SS 304 |
| 29 | Blind plug | ASTM A350 LF2 |
| 28 | Vent | 3/4" 6000 PSIG BALL VALVE |
| 27 | Vent+locked part | STAINLESS STEEL |
| 26 | Drain | 1" 6000 PSIG BALL VALVE |
| 25 | Pig bearing | ASTM A350 LF2 |
| 24 | Trunnion seal | VITON |
| 23 | Trunnion bolt | ASTM A193 - Gr. B7M |
| 22 | Trunnion | ASTM A350 LF2 |
| 21 | Nut | ASTM A194 - Gr.7M |
| 20 | Stud | ASTM A193 - Gr. B7M |
| 19 | Antistatic ball | 1,4301 |
| 18 | Antistatic spring | 1,4301 |
| 17 | Bonnet packing | 316 SS+GRAPHITE+VITON |
| 16 | Bonnet bolt | ASTM A193 - Gr. B7M |
| 15 | Bonnet seal | VITON |
| 14 | Bonnet flange | ASTM A350 LF2 |
| 13 | Bonnet | ASTM A350 LF2 |
| 12 | Seat seal | VITON |
| 11 | Fire stopper | GRAPHITE |
| 10 | Body seal | 316 SS+GRAPHITE+VITON |
| 9 | Cover seal | VITON |
| 8 | Seat spring | INCONEL X-750 |
| 7 | Seat | RPTFE ( %25 GLASS FILLED) |
| 6 | Seat retainer-pig catch | ASTM A350 LF2+ENP |
| 5 | Seat retainer | ASTM A350 LF2+ENP |
| 4 | Stem | 17-4PH SS |
| 3 | Ball | ASTM A350 LF2+ENP |
| 2 | Cover | ASTM A350 LF2 |
| 1 | Body | ASTM A350 LF2 |

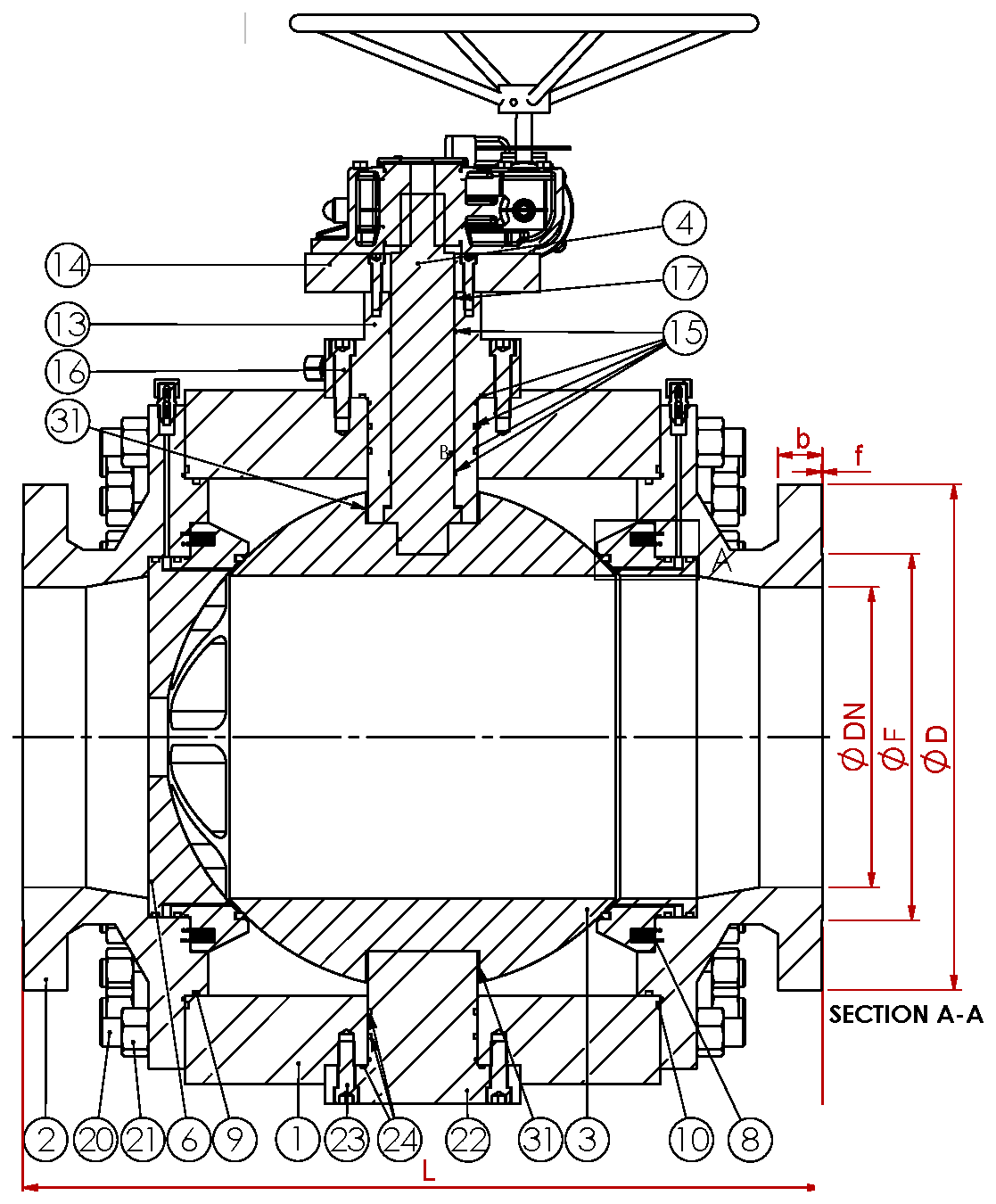

Dimensions and connection sizes
| CLASS | SIZE | ØDN | L | ØD | ØRTJ | ØF | Øk | b | f | ØI | HOLE UNIT(n) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 300 | 16" | 385 | 1025 | 648 | 469,9 | 571,5 | 57,1 | 1,5 | 35 | 20 | |
| 900 | 8" | 201 | 892 | 470 | 269,9 | 308 | 393,7 | 72 | 7,92 | 38,1 | 12 |
Pig sizes
| Pig style | CLASS | SIZE | L1 | ØA | L2 | ØB | ØC |
|---|---|---|---|---|---|---|---|
| Cup & disk style pigs (poly/cast) | 300 | 16" | 625,6 | 398,5 | 495,5 | 413 | 645 |
| Cup & disk style pigs (poly/cast) | 900 | 8" | 362 | 209 | 314,5 | 222 | 385 |
| Bullet style pigs (foam) | 300 | 16" | 554 | 409 | 495,5 | 413 | 645 |
| Bullet style pigs (foam) | 900 | 8" | 320,7 | 219 | 314,5 | 222 | 385 |
| Inflatable spheres style pigs | 300 | 16" | 408 | 495,5 | 413 | 645 | |
| Inflatable spheres style pigs | 900 | 8" | 212 | 314,5 | 222 | 385 |
