PN 10/16 Full Bore/Flanged (Cast iron)

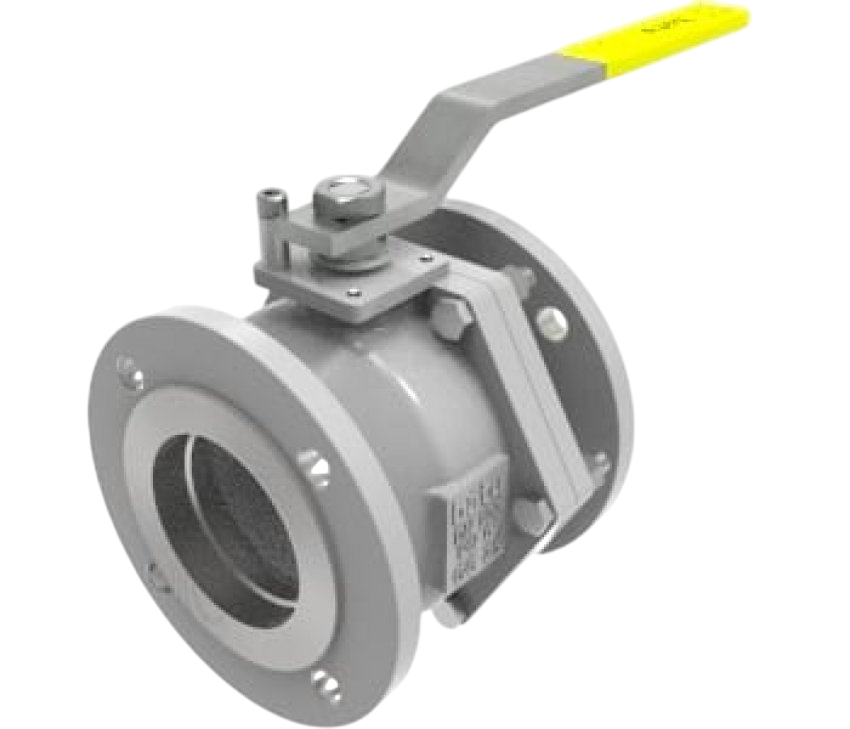

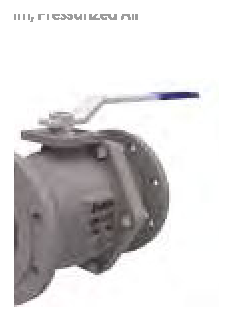

PN 10 – PN 16 ball valve for DN 50 to DN 250 lines, type BKV-FL-TG, full bore and flanged, in spheroidal cast iron. Built to TS 3148. See all cast iron water ball valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Ball valve |
|---|---|
| Type code | BKV-FL-TG |
| Size range | DN 50 – DN 250 |
| Body | Sphero |
| Connection | Full bore / Flanged |
| Dimensions | TS 3148 / EN 558 |
| Connections | EN 1092-2 |
| Working pressure | PN 10 - PN 16 |
| Working temperature | −10 °C / +180 °C |
| Usage areas | Water, hot water, steam, pressurized air |

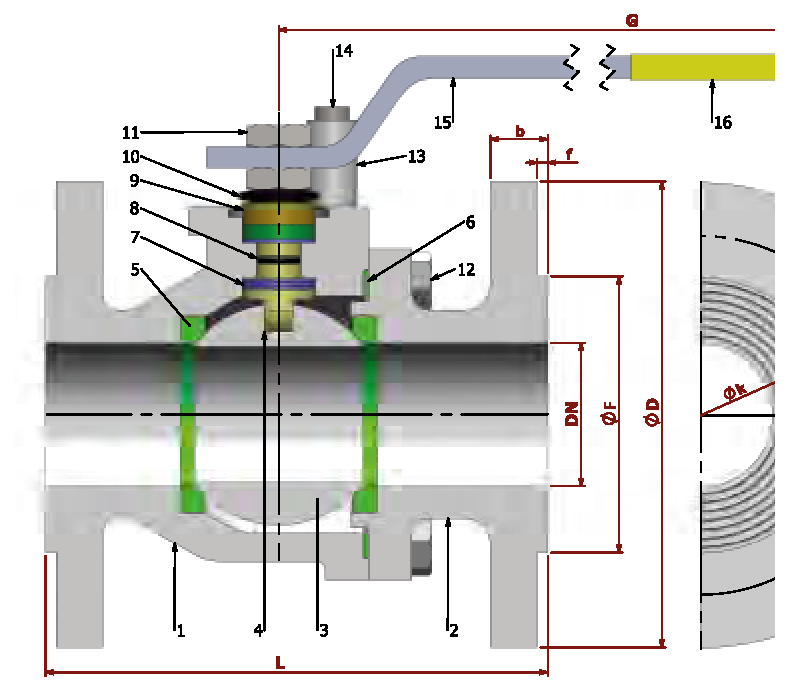

Parts list
| No | Item description | Material |
|---|---|---|
| 16 | Plastic covering | PVC |
| 15 | Ball action handle | st 37 |
| 14 | Bolt | ST 42 Gal. |
| 13 | Stopping pin | ST 42 Gal. |
| 12 | Bolt | ST 42 |
| 11 | Counter nut | 5,6 Gal. |
| 10 | Bowl washer | 50 Cr V 4 |
| 9 | Pressure ring | MS 58 |
| 8 | Spindle o-ring | VITON |
| 7 | Neck tightness element | PTFE-Teflon |
| 6 | Body tightness element | PTFE-Teflon |
| 5 | Ball tightness element | PTFE-Teflon |
| 4 | Action spindle | .1.4021 |
| 3 | Ball | .1.0144 |
| 2 | Cover | GGG 40 |
| 1 | Body | GGG 40 |

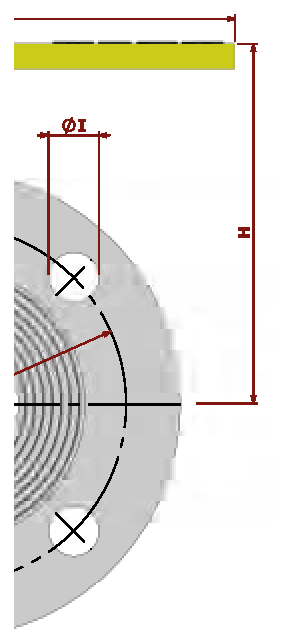

Dimensions and connection sizes
| DN | Size | PN 16 | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | G | H | f | D | b | k | Hole unit | I | F | Kg | ||
| DN 50 | 2" | 150 | 275 | 115 | 3 | 165 | 20 | 125 | 4 | 19 | 102 | 9,5 |
| DN 65 | 2 1/2" | 170 | 275 | 120 | 3 | 185 | 20 | 145 | 4 | 19 | 122 | 12,7 |
| DN 80 | 3" | 180 | 320 | 135 | 3 | 200 | 22 | 160 | 8 | 19 | 138 | 18,3 |
| DN 100 | 4" | 190 | 380 | 150 | 3 | 220 | 24 | 180 | 8 | 19 | 158 | 21,9 |
| DN 125 | 5" | 325 | 450 | 170 | 3 | 250 | 26 | 210 | 8 | 19 | 188 | 39,6 |
| DN 150 | 6" | 350 | 450 | 200 | 3 | 285 | 26 | 240 | 8 | 23 | 212 | 53,2 |
| DN 200 | 8" | 400 | 650 | 235 | 3 | 340 | 26 | 295 | 12 | 23 | 268 | -- |
