PN 150 Reduction Bore/Butt-Welded (Steel)

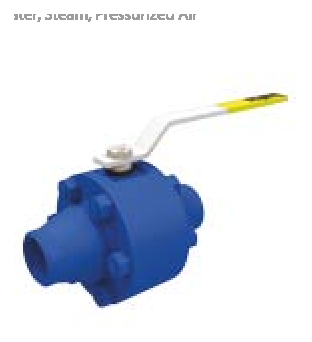

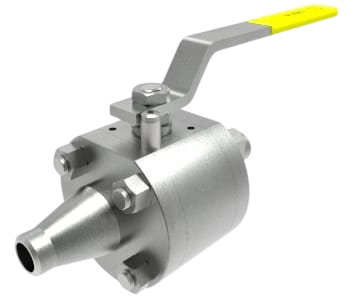

PN 150 ball valve for DN 15 to DN 100 lines, type BKV-KA-RG, reduced bore with butt weld ends, in steel. Built to ASME B 16.25. See all steel ball valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Ball valve |
|---|---|
| Type code | BKV-KA-RG |
| Size range | DN 15 – DN 100 |
| Body | Steel |
| Connection | Reduced bore / Butt weld |
| Dimensions | TS EN 12982 / ASME B 16.10 |
| Connections | ASME B 16.25 |
| Working pressure | PN 150 |
| Working temperature | −30 °C / +180 °C |
| Usage areas | Water, hot water, steam, pressurized air |

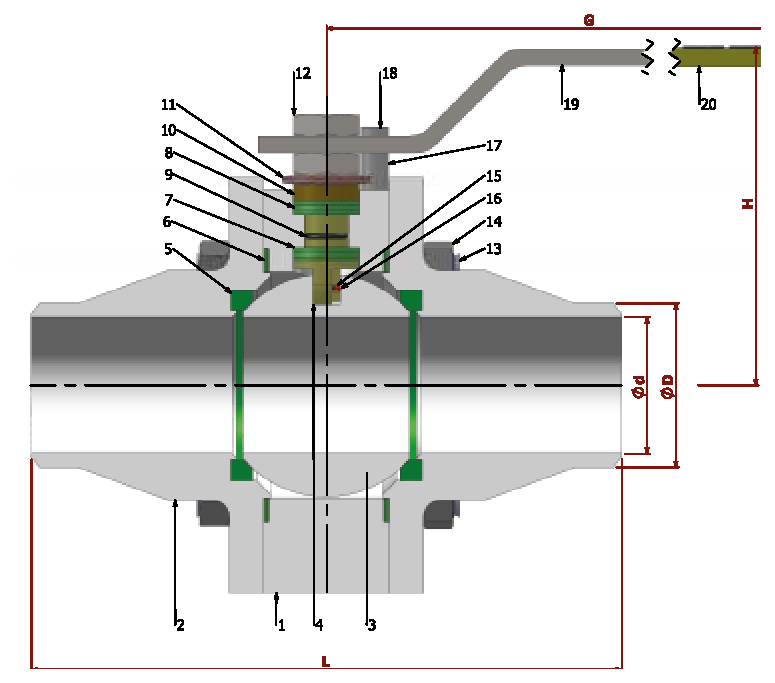

Parts list
| No | Item description | Material |
|---|---|---|
| 20 | Plastic covering | PVC / PVC |
| 19 | Ball action handle | st 37 / 1.4301. |
| 18 | Bolt | ST 42 Gal. / 1.4301. - 1.4401. |
| 17 | Stopping pin | ST 42 Gal. / 1.4301. |
| 16 | Antistatic ball | 1.4301. / 1.4301. - 1.4401. |
| 15 | Antistatic spring | 1.4301. / 1.4301. - 1.4401. |
| 14 | Nut | 5.6. / 1.4301. - 1.4401. |
| 13 | Stopping pin | 4140 - 5140 / 1.4301. |
| 12 | Counter nut | 5,6 Gal. / 1.4301. |
| 11 | Bowl washer | 50 Cr V 4 / 1.4301. |
| 10 | Pressure ring | MS 58 / 1.4301. - 1.4401. |
| 9 | Spindle o-ring | VITON / VITON |
| 8 | Burgman graphite o-ring | EN 1514-1 / EN 1514-1 |
| 7 | Neck tightness element | PTFE-Teflon / PTFE-Teflon |
| 6 | Body tightness element | PTFE-Teflon / PTFE-Teflon |
| 5 | Ball tightness element | PTFE-Teflon / PTFE-Teflon |
| 4 | Action spindle | 1,4021 / 1.4301. - 1.4401. |
| 3 | Ball | 1.4301 / 1.4086 / 1.4305. - 1.4401. |
| 2 | Cover | SAE 1020 / 1.4301. - 1.4401. |
| 1 | Body | SAE 1020 / 1.4301. - 1.4401. |
Dimensions and connection sizes
| DN | Size | PN 150 | |||||
|---|---|---|---|---|---|---|---|
| L | G | H | d | D | Kg | ||
| DN 15 | 1/2" | 216 | 150 | 75 | 12 | 21,3 | -- |
| DN 20 | 3/4" | 229 | 150 | 75 | 15 | 26,7 | -- |
| DN 25 | 1" | 254 | 150 | 83 | 20 | 33,4 | -- |
| DN 32 | 1 1/4" | 279 | 180 | 90 | 25 | 42,2 | -- |
| DN 40 | 1 1/2" | 305 | 230 | 95 | 32 | 48,3 | -- |
| DN 50 | 2" | 368 | 275 | 115 | 40 | 60,3 | -- |
| DN 65 | 2 1/2" | 419 | 275 | 120 | 50 | 76,1 | -- |
| DN 80 | 3" | 381 | 320 | 135 | 65 | 88,1 | -- |
| DN 100 | 4" | 457 | 380 | 150 | 80 | 114,3 | -- |
Data sheet
