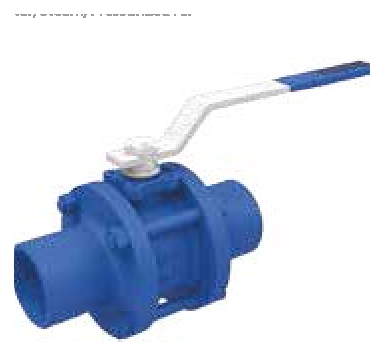

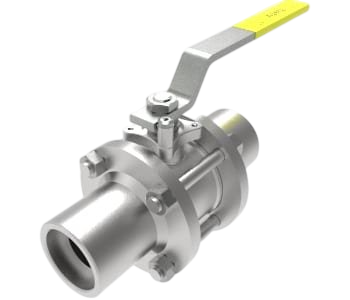

PN 16/40 Reduction Bore/ with Socket (Steel)
PN 16 – PN 40 ball valve for DN 6 to DN 125 lines, type BKV-SO-RG, reduced bore with socket weld ends, in steel. Built to ASME B 16.11. See all steel ball valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Ball valve |
|---|---|
| Type code | BKV-SO-RG |
| Size range | DN 6 – DN 125 |
| Body | Steel |
| Connection | Reduced bore / Socket weld |
| Dimensions | TS EN 12982 / ASME B 16.10 |
| Connections | ASME B 16.11 |
| Working pressure | PN 16 - 40 |
| Working temperature | −30 °C / +180 °C |
| Usage areas | Water, hot water, steam, pressurized air |
Parts list
| No | Item description | Material |
|---|---|---|
| 17 | Plastic covering | PVC / PVC |
| 16 | Ball action handle | st 37 / 1.4301. |
| 15 | Bolt | ST 42 Gal. / 1.4301. - 1.4401. |
| 14 | Stopping pin | ST 42 Gal. / 1.4301. |
| 13 | Nut | 5.6. / 1.4301. - 1.4401. |
| 12 | Stopping pin | CK 35 / CK 45 / 1.4301. |
| 11 | Counter nut | 5,6 Gal. / 1.4301. |
| 10 | Bowl washer | 50 Cr V 4 / 1.4301. |
| 9 | Pressure ring | MS 58 / 1.4301. - 1.4401. |
| 8 | Spindle o-ring | VITON / VITON |
| 7 | Neck tightness element | PTFE-Teflon / PTFE-Teflon |
| 6 | Body tightness element | PTFE-Teflon / PTFE-Teflon |
| 5 | Ball tightness element | PTFE-Teflon / PTFE-Teflon |
| 4 | Action spindle | 1,4021 / 1.4301. - 1.4401. |
| 3 | Ball | 1.4301 / 1.4086 / 1.4305. - 1.4401. |
| 2 | Cover | A 216 WCB / 1.4301. - 1.4401. |
| 1 | Body | A 216 WCB / 1.4301. - 1.4401. |

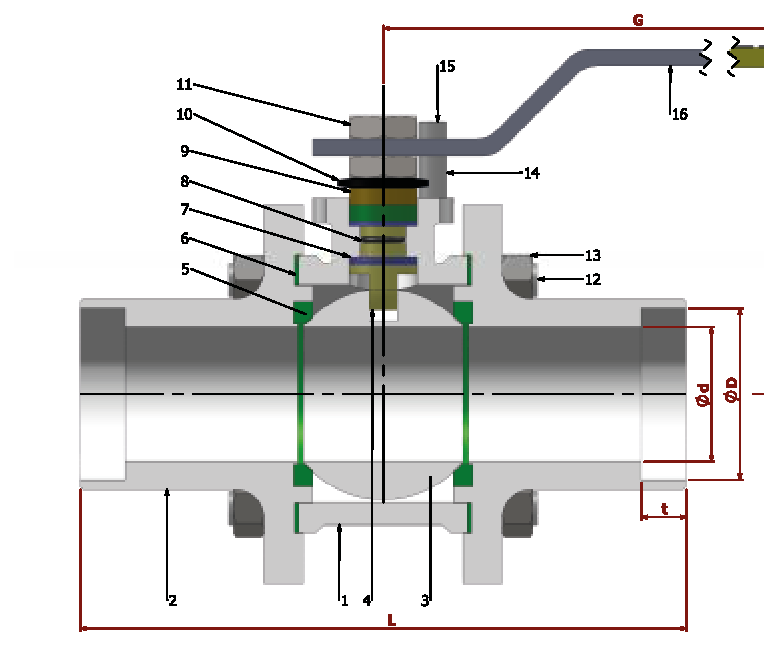

Dimensions and connection sizes
| DN | Size | PN 16 - PN 40 | PN 16 | PN 40 | |||||
|---|---|---|---|---|---|---|---|---|---|
| L | G | H | d | D | t | Kg | Kg | ||
| DN 6 | 1/8" | 140 | 150 | 75 | 6 | 10,7 | 10 | 0,8 | 0,9 |
| DN 8 | 1/4" | 140 | 150 | 75 | 8 | 14,3 | 10 | 0,9 | 1,0 |
| DN 10 | 3/8" | 140 | 150 | 75 | 10 | 17,6 | 10 | 1,1 | 1,2 |
| DN 15 | 1/2" | 140 | 150 | 75 | 10 | 21,8 | 10 | 1,2 | 1,3 |
| DN 20 | 3/4" | 152 | 150 | 75 | 15 | 27,4 | 13 | 1,5 | 1,7 |
| DN 25 | 1" | 165 | 150 | 83 | 20 | 34,1 | 13 | 2,2 | 2,6 |
| DN 32 | 1 1/4" | 178 | 180 | 90 | 25 | 42,8 | 13 | 4,0 | 5,0 |
| DN 40 | 1 1/2" | 190 | 230 | 95 | 32 | 48,8 | 16 | 6,0 | 6,5 |
| DN 50 | 2" | 216 | 275 | 115 | 40 | 61,8 | 16 | 8,5 | 9,0 |
| DN 65 | 2 1/2" | 241 | 2875 | 120 | 50 | 77 | 16 | 12,5 | 13,0 |
| DN 80 | 3" | 283 | 320 | 135 | 65 | 90 | 16 | 14,0 | 14,5 |
| DN 100 | 4" | 308 | 380 | 150 | 80 | 115,4 | 20 | 18,0 | 18,5 |
| DN 125 | 5" | 381 | 450 | 170 | 100 | 141 | 25 | 21,0 | 22,0 |
