PN 16/25/40 EU-1/BW Full Bore/Butt-Welded (Steel)

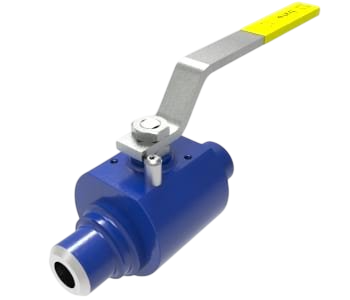

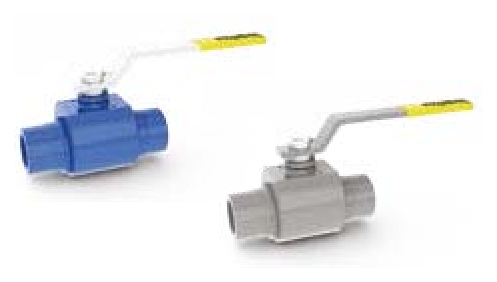

PN 16/25/40 EU-001/BW ball valve for R 1/2″ to R 1″ lines, type BKV-EU 001/BW, full bore with butt weld ends, in steel. Built to EN 1092 – 1. See all eu ball valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | EU-001/BW ball valve |
|---|---|
| Type code | BKV - EU 001/BW |
| Size range | R 1/2" – R 1" |
| Body | Steel |
| Connection | Full bore / Butt weld |
| Dimensions | EN 558 |
| Connections | EN 1092 - 1 |
| Working pressure | PN 16 - 25 - 40 |
| Working temperature | −30 °C / +180 °C |
| Usage areas | Natural gas, LPG-LNG, fuel-oil, pressurized air and other gases etc. |

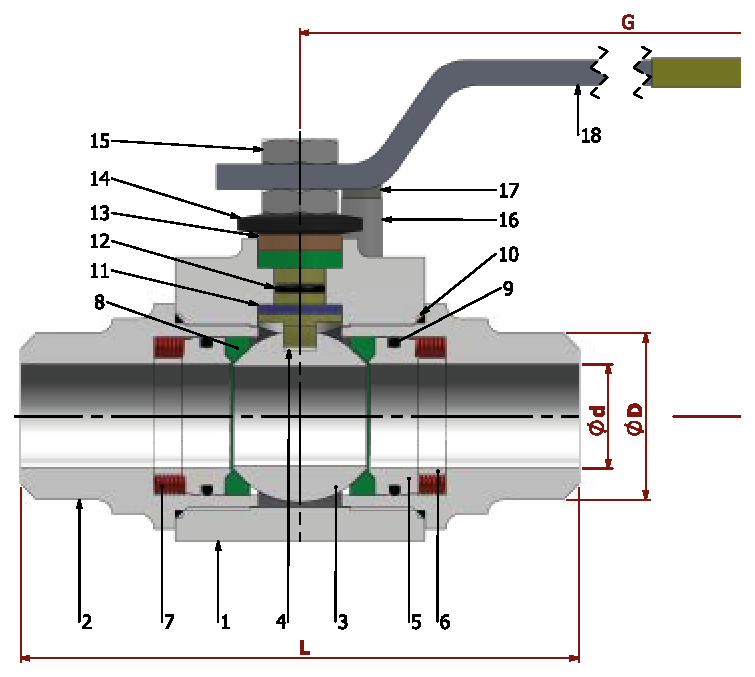

Parts list
| No | Item description | Material |
|---|---|---|
| 19 | Plastic covering | PVC / PVC |
| 18 | Ball action handle | st 37 / 1.4301. |
| 17 | Bolt | ST 42 Gal. / 1.4301. - 1.4401. |
| 16 | Stopping pin | ST 42 Gal. / 1.4301. |
| 15 | Counter nut | 5,6 Gal. / 1.4301. |
| 14 | Bowl washer | 50 Cr V 4 / 1.4301. |
| 13 | Pressure ring | MS 58 / 1.4301. - 1.4401. |
| 12 | Spindle o-ring | VITON / VITON |
| 11 | Neck tightness element | PTFE-Teflon / PTFE-Teflon |
| 10 | Body o-ring | VITON / VITON |
| 9 | Body o-ring | VITON / VITON |
| 8 | Ball tightness element | PTFE-Teflon / PTFE-Teflon |
| 7 | Spring | 1.4301. / 1.4301. - 1.4401. |
| 6 | Spring upholder | 22 Mn 6 / 1.4301. - 1.4401. |
| 5 | Tightness ring | 22 Mn 6 / 1.4301. - 1.4401. |
| 4 | Action spindle | 1,4021 / 1.4301. - 1.4401. |
| 3 | Ball | 1.4301 / 1.4086 / 1.4305. - 1.4401. |
| 2 | Cover | 22 Mn 6 / 1.4301. - 1.4401. |
| 1 | Body | 22 Mn 6 / 1.4301. - 1.4401. |
Dimensions and connection sizes
| DN | Size | PN 16 - 25 - 40 | |||||
|---|---|---|---|---|---|---|---|
| L | G | H | d | D | Kg | ||
| DN 15 | 1/2" | 140 | 150 | 75 | 15 | 1/2" | -- |
| DN 20 | 3/4" | 152 | 150 | 83 | 20 | 3/4" | -- |
| DN 25 | 1" | 165 | 180 | 90 | 25 | 1" | -- |
