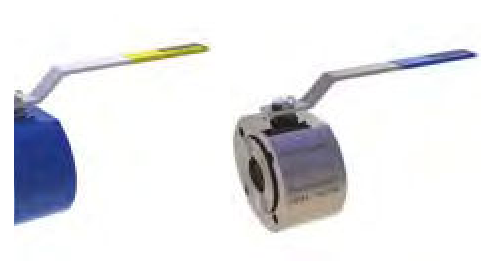

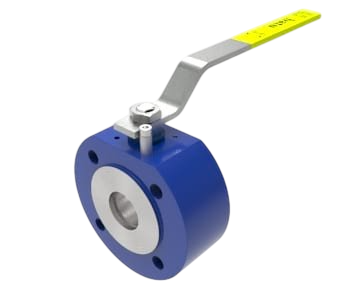

PN 16/40 Full Bore/Flanged (Steel)
PN 16/40 Burak type monoblock ball valve for DN 15 to DN 250 lines, type BBTKV-FS, full bore and fire safe. Built to EN 1092. See all burak type wafer mono-block ball valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Burak type monoblock ball valve |
|---|---|
| Type code | BBTKV-FS |
| Size range | DN 15 – DN 250 |
| Connection | Full bore / Fire safe |
| Dimensions | BATU ÖZEL |
| Connections | EN 1092 |
| Working pressure | PN 16 - 40 |
| Working temperature | −30 °C / +180 °C |
| Usage areas | Natural gas, LPG-LNG, fuel-oil, pressurized air and other gases etc. |

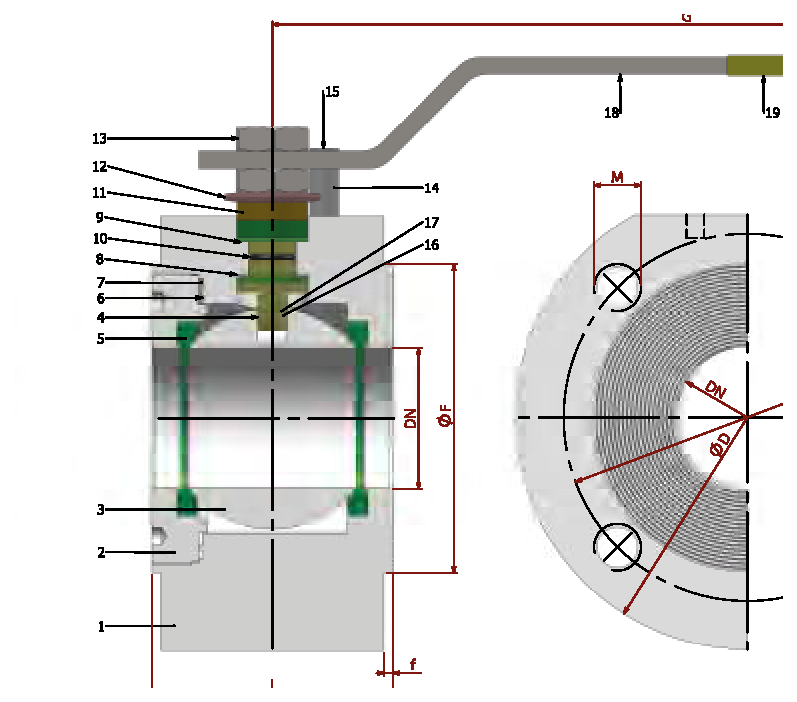

Parts list
| No | Item description | Material |
|---|---|---|
| 19 | Plastic covering | PVC / PVC |
| 18 | Ball action handle | st 37 / 1.4301. |
| 17 | Antistatic ball | 1.4301. / 1.4301. - 1.4401 |
| 16 | Antistatic spring | 1.4301. / 1.4301. - 1.4401 |
| 15 | Bolt | ST 42 Gal. / 1.4301. - 1.4401 |
| 14 | Stopping pin | ST 42 Gal. / 1.4301. |
| 13 | Counter nut | 5,6 Gal. / 1.4301. |
| 12 | Bowl washer | 50 Cr V 4 / 1.4301. |
| 11 | Pressure ring | MS 58 / 1.4301. - 1.4401 |
| 10 | Spindle o-ring | VITON / VITON |
| 9 | Burgman graphite o-ring | EN 1514-1 / EN 1514-1 |
| 8 | Neck tightness element | PTFE-Teflon / PTFE-Teflon |
| 7 | Body o-ring | VITON / VITON |
| 6 | Body tightness element | PTFE-Teflon / PTFE-Teflon |
| 5 | Ball tightness element | PTFE-Teflon / PTFE-Teflon |
| 4 | Action spindle | 1,4021 / 1.4301. - 1.4401 |
| 3 | Ball | 1.4301 / 1.4086 / 1.4301. - 1.4401 |
| 2 | Cover | ASTM A 105 / 1.4301. - 1.4401 |
| 1 | Body | ASTM A 105 / 1.4301. - 1.4401 |
Dimensions and connection sizes
| DN | Size | L | G | H | f | D | PN 16 | PN 40 | Kg | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| k | Hole unit | M | F | k | Hole unit | M | F | ||||||||
| DN 15 | 1/2" | 38 | 150 | 75 | 2 | 87 | 65 | 4 | M 12 | 50 | 65 | 4 | M 12 | 50 | 1,52 |
| DN 20 | 3/4" | 40 | 150 | 83 | 2 | 97 | 75 | 4 | M 12 | 60 | 75 | 4 | M 12 | 60 | 2 |
| DN 25 | 1" | 45 | 180 | 90 | 2 | 107 | 85 | 4 | M 12 | 68 | 85 | 4 | M 12 | 68 | 2,66 |
| DN 32 | 1 1/4" | 58 | 230 | 95 | 2 | 135 | 100 | 4 | M 16 | 78 | 100 | 4 | M 16 | 78 | 5,23 |
| DN 40 | 1 1/2" | 64 | 275 | 115 | 3 | 145 | 110 | 4 | M 16 | 88 | 110 | 4 | M 16 | 88 | 6,82 |
| DN 50 | 2" | 82 | 275 | 120 | 3 | 165 | 125 | 4 | M 16 | 105 | 125 | 4 | M 16 | 105 | 11,06 |
| DN 65 | 2 1/2" | 103 | 320 | 135 | 3 | 177 | 145 | 4 | M 16 | 125 | 145 | 8 | M 16 | 125 | 15,58 |
| DN 80 | 3" | 122 | 380 | 150 | 3 | 197 | 160 | 8 | M 16 | 132 | 160 | 8 | M 16 | 132 | 22,28 |
| DN 100 | 4" | 150 | 450 | 170 | 3 | 232 | 180 | 8 | M 16 | 158 | 190 | 8 | M 20 | 162 | 37,28 |
| DN 125 | 5" | 200 | 450 | 200 | 3 | 270 | 210 | 8 | M 16 | 188 | 220 | 8 | M 20 | 188 | 69 |
| DN 150 | 6" | 235 | 650 | 235 | 3 | 305 | 240 | 8 | M 20 | 212 | 250 | 8 | M 22 | 218 | 96 |
| DN 200 | 8" | 310 | 900 | 270 | 3 | 400 | 295 | 12 | M 20 | 268 | 320 | 12 | M 27 | 285 | 215 |
| DN 250 | 10" | 470 | 1100 | 370 | 3 | 500 | 355 | 12 | M 24 | 320 | 385 | 12 | M 27 | 345 | 475 |
