PN 16/40 Full Bore/Threaded (Steel)

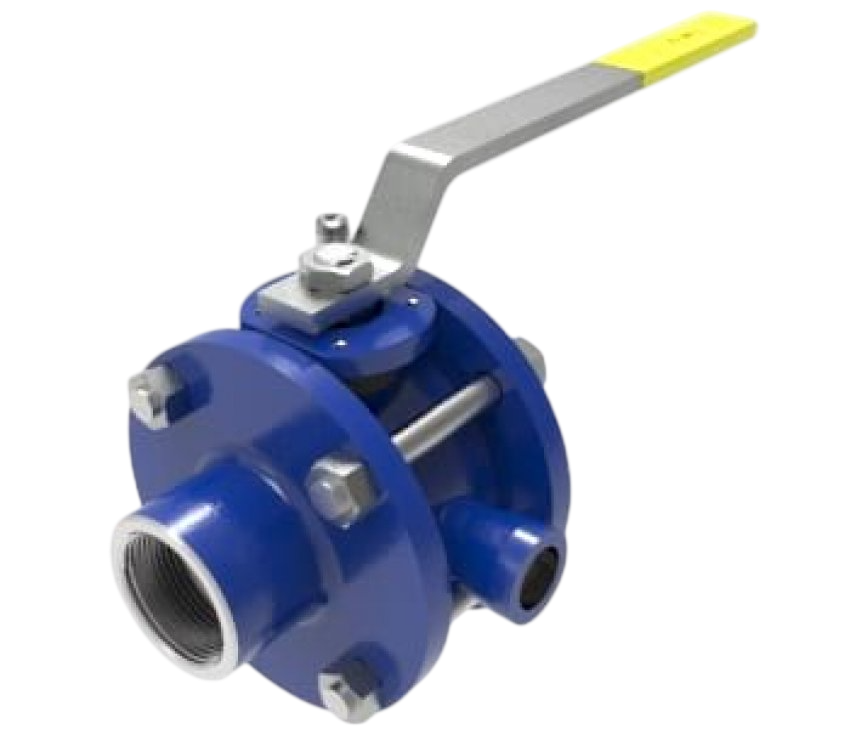

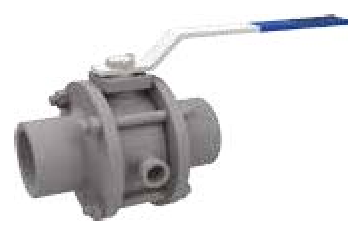

PN 16 – PN 40 jacket ball valve for R 1/2″ to R 4″ lines, type BKV-CEK-Dİ-TG, full bore and threaded, in steel. Built to EN 10226-1. See all jacket ball valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Jacket ball valve |
|---|---|
| Type code | BKV-CEK-Dİ-TG |
| Size range | R 1/2" – R 4" |
| Body | Steel |
| Connection | Full bore / Threaded |
| Dimensions | BATUSAN ÖZEL |
| Connections | EN 10226-1 |
| Working pressure | PN 16 - 40 |
| Working temperature | +180 °C |
| Usage areas | Asphalt, food and chemical industry |

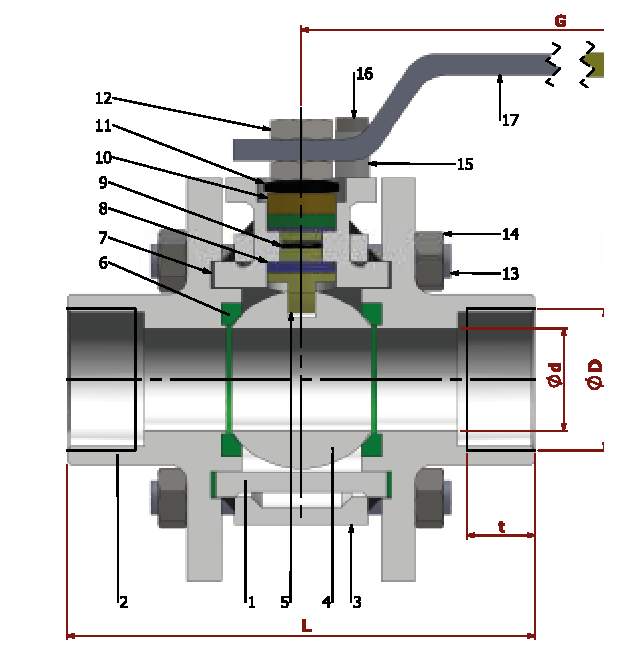

Parts list
| No | Item description | Material |
|---|---|---|
| 18 | Plastic covering | PVC / PVC |
| 17 | Ball action handle | st 37 / 1.4301. |
| 16 | Bolt | ST 42 Gal. / 1.4301. - 1.4401. |
| 15 | Stopping pin | ST 42 Gal. / 1.4301. |
| 14 | Nut | 5.6. / 1.4301. - 1.4401. |
| 13 | Stopping pin | CK 35 / CK 45 / 1.4301. |
| 12 | Counter nut | 5,6 Gal. / 1.4301. |
| 11 | Bowl washer | 50 Cr V 4 / 1.4301. |
| 10 | Pressure ring | MS 58 / 1.4301. - 1.4401. |
| 9 | Spindle o-ring | VITON / VITON |
| 8 | Neck tightness element | PTFE-Teflon / PTFE-Teflon |
| 7 | Body tightness element | PTFE-Teflon / PTFE-Teflon |
| 6 | Ball tightness element | PTFE-Teflon / PTFE-Teflon |
| 5 | Action spindle | 1,4021 / 1.4301. - 1.4401. |
| 4 | Ball | 1.4301 / 1.4086 / 1.4305. - 1.4401. |
| 3 | Jacket | St 44 / 1.4301. - 1.4401. |
| 2 | Cover | St 37-2 / 1.4301. - 1.4401. |
| 1 | Body | A 216 WCB / 1.4301. - 1.4401. |
Dimensions and connection sizes
| DN | Size | L | G | H | d | D | t | PN 16 | PN 40 |
|---|---|---|---|---|---|---|---|---|---|
| Kg | Kg | ||||||||
| DN 15 | 1/2" | 75 | 150 | 75 | 15 | 1/2" | 14 | — | — |
| DN 20 | 3/4" | 80 | 150 | 83 | 20 | 3/4" | 17 | — | — |
| DN 25 | 1" | 90 | 180 | 90 | 20 | 1" | 20 | — | — |
| DN 32 | 1 1/4" | 110 | 230 | 95 | 32 | 11/4" | 22 | — | — |
| DN 40 | 1 1/2" | 120 | 275 | 115 | 40 | 11/2" | 25 | — | — |
| DN 50 | 2" | 140 | 275 | 120 | 50 | 2" | 28 | — | — |
| DN 65 | 2 1/2" | 170 | 320 | 135 | 65 | 2 1/2" | 32 | — | — |
| DN 80 | 3" | 195 | 380 | 150 | 80 | 3" | 35 | — | — |
| DN 100 | 4" | 230 | 450 | 170 | 100 | 4" | 40 | — | — |
