PN 25 Reduction Bore/Flanged (Sphero)

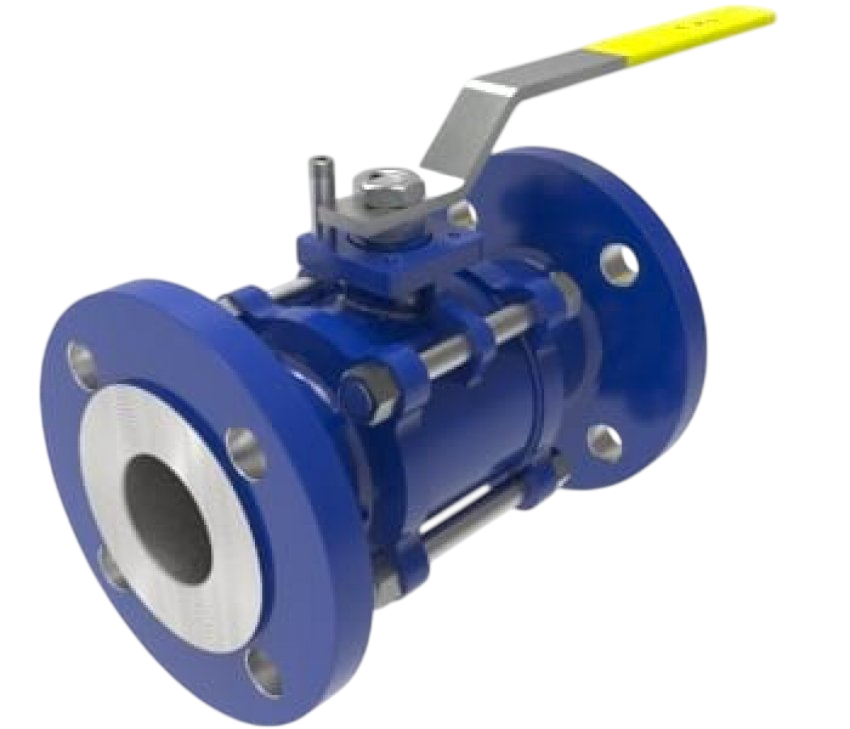

PN 25 ball valve for DN 15 to DN 200 lines, type BKV-FL-RG, reduced bore and flanged, in spheroidal cast iron. Built to TS 3148. See all cast iron water ball valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Ball valve |
|---|---|
| Type code | BKV-FL-RG |
| Size range | DN 15 – DN 200 |
| Body | Sphero |
| Connection | Reduced bore / Flanged |
| Dimensions | TS 3148 / EN 558 |
| Connections | EN 1092-2 |
| Working pressure | PN 25 |
| Working temperature | −20 °C / +180 °C |
| Usage areas | Water, hot water, steam, pressurized air |

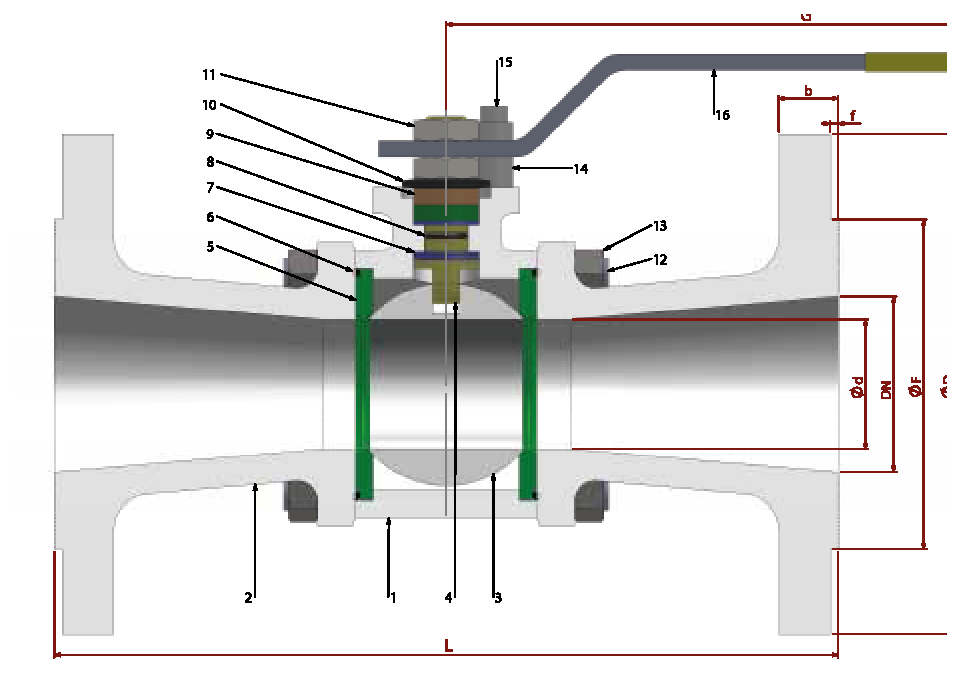

Parts list
| No | Item description | Material |
|---|---|---|
| 17 | Plastic covering | PVC |
| 16 | Ball action handle | st 37 |
| 15 | Bolt | ST 42 Gal. |
| 14 | Stopping pin | ST 42 Gal. |
| 13 | Nut | 5.6. |
| 12 | Stopping pin | CK 35 / CK 45 |
| 11 | Counter nut | 5,6 Gal. |
| 10 | Bowl washer | 50 Cr V 4 |
| 9 | Pressure ring | MS 58 |
| 8 | Spindle o-ring | VITON |
| 7 | Neck tightness element | PTFE-Teflon |
| 6 | Body o-ring | VITON |
| 5 | Ball tightness element | PTFE-Teflon |
| 4 | Action spindle | 1,4021 |
| 3 | Ball | 1.4301 / 1.4086 |
| 2 | Cover | GGG 40.3 |
| 1 | Body | GGG 40.3 |

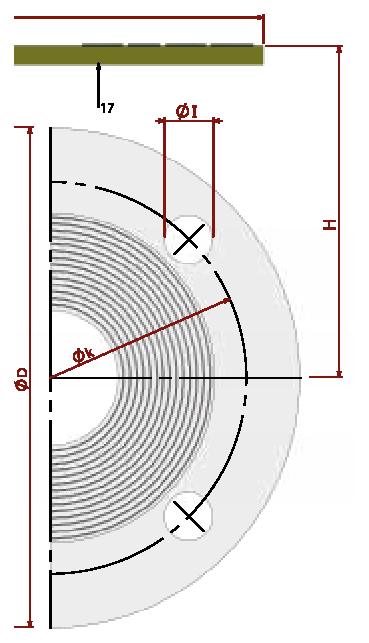

Dimensions and connection sizes
| DN | Size | PN 16 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | G | H | f | d | D | b | k | Hole unit | I | F | Kg | ||
| DN 15 | 1/2" | 130 | 150 | 75 | 2 | 12 | 95 | 16 | 65 | 4 | 14 | 45 | 2,3 |
| DN 20 | 3/4" | 150 | 150 | 83 | 2 | 15 | 105 | 18 | 75 | 4 | 14 | 58 | 3,4 |
| DN 25 | 1" | 160 | 150 | 83 | 2 | 20 | 115 | 18 | 85 | 4 | 14 | 68 | 5,6 |
| DN 32 | 1 1/4" | 180 | 180 | 90 | 2 | 25 | 140 | 20 | 100 | 4 | 19 | 78 | 7,2 |
| DN 40 | 1 1/2" | 200 | 230 | 95 | 3 | 32 | 150 | 20 | 110 | 4 | 19 | 88 | 10 |
| DN 50 | 2" | 230 | 275 | 115 | 3 | 40 | 165 | 22 | 125 | 4 | 19 | 102 | 14,6 |
| DN 65 | 2 1/2" | 290 | 275 | 120 | 3 | 50 | 185 | 24 | 145 | 4 | 19 | 122 | 20,7 |
| DN 80 | 3" | 310 | 320 | 135 | 3 | 65 | 200 | 24 | 160 | 8 | 19 | 138 | 30,8 |
| DN 100 | 4" | 350 | 380 | 150 | 3 | 80 | 235 | 24 | 190 | 8 | 23 | 162 | 48 |
| DN 125 | 5" | 400 | 450 | 170 | 3 | 100 | 270 | 26 | 220 | 8 | 28 | 188 | 78,7 |
| DN 150 | 6" | 450 | 450 | 200 | 3 | 125 | 300 | 28 | 250 | 8 | 28 | 218 | -- |
| DN 200 | 8" | 550 | 650 | 235 | 3 | 150 | 360 | 30 | 310 | 12 | 28 | 278 | -- |
