PN 250 Threaded(Steel)

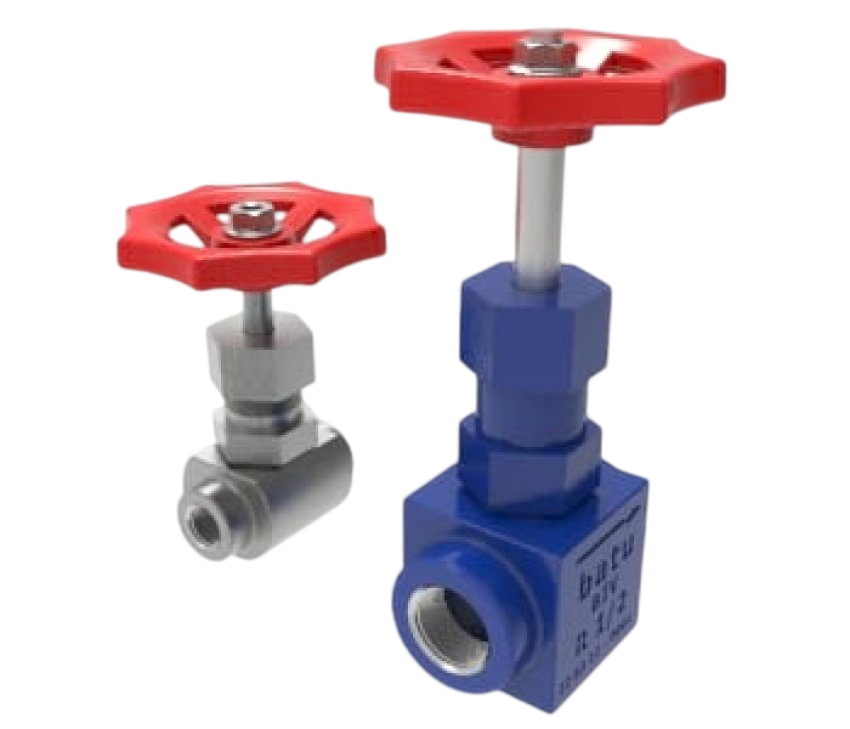

PN 250 steel needle valve for R 1/4″ to R 2″ lines, type BIV-DI, threaded. Built to EN 100226-1. See all needle valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Needle valve |
|---|---|
| Type code | BİV - Dİ |
| Size range | R 1/4" – R 2" |
| Material | Steel |
| Connection | Threaded |
| Dimensions | BATUSAN ÖZEL |
| Connections | EN 100226-1 |
| Working pressure | PN 250 |
| Working temperature | −40 °C / +250 °C |
| Usage areas | Water, hot water, steam, pressurized air |

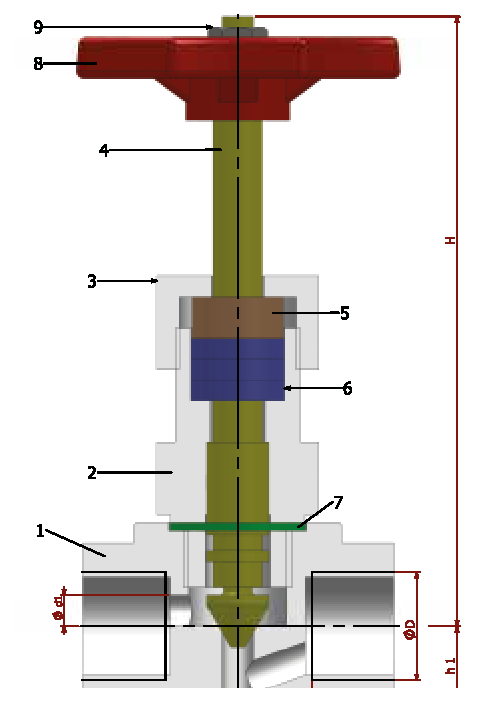

Parts list
| No | Item description | Material |
|---|---|---|
| 9 | Nut | 5.6 Gal. / 1.4301 / 1.4301 |
| 8 | Action wheel | Aluminium / Aluminium / Aluminium |
| 7 | Tightness element | Copper seal / Copper seal / Copper seal |
| 6 | Tightness element | PTFE / PTFE / PTFE |
| 5 | Pressure ring | MS 58 / 1.4301 - 1.4401 / MS 58 |
| 4 | Action spindle | 1.4301 / 1.4301 - 1.4401 / 1.4301 |
| 3 | Cover | St 37-2 / 1.4301 - 1.4401 / MS 58 |
| 2 | Action spindle seat | St 37-2 / 1.4301 - 1.4401 / MS 58 |
| 1 | Body | St 37-2 / 1.4301 - 1.4401 / MS 58 |
Dimensions and connection sizes
| DN | Size | PN 250 | ||||||
|---|---|---|---|---|---|---|---|---|
| L | D | t | H | h1 | d1 | Kg | ||
| DN 8 | 1/4" | 48 | 1/4" | 11 | 70 | 15 | 3 | 0,34 |
| DN 10 | 3/8" | 55 | 3/8" | 12 | 70 | 15 | 4 | 0,38 |
| DN 15 | 1/2" | 60 | 1/2" | 14 | 110 | 25 | 6 | 0,80 |
| DN 20 | 3/4" | 70 | 3/4" | 17 | 120 | 25 | 7 | 1,10 |
| DN 25 | 1" | 90 | 1" | 20 | 130 | 25 | 9 | 1,70 |
| DN 32 | 1 1/4" | 95 | 1 1/4" | 22 | 150 | 30 | 9 | 1,90 |
| DN 40 | 1 1/2" | 110 | 1 1/2" | 25 | 160 | 35 | 12 | 3,80 |
| DN 50 | 2" | 120 | 2" | 28 | 160 | 35 | 16 | 4,25 |
