PN 16/25/40 Threaded (Cast iron/Sphero/Steel)

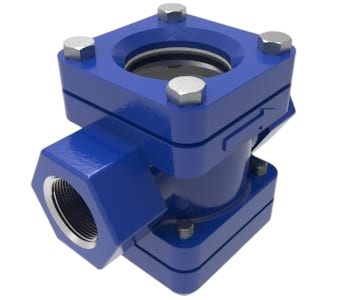

PN 16/40 double glass sight glass for R 1/2″ to R 2″ lines, type BAG-DI, threaded, with connections to EN 10226-1. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Sight glass (flow indicator) |
|---|---|
| Type code | BAG - Dİ |
| Size range | R 1/2" – R 2" |
| Bore / connection | Double glass / threaded |
| Dimensions | BATUSAN ÖZEL |
| Connections | EN 10226-1 |
| Working pressure | PN 16 - 40 |
| Working temperature | −10 °C / +180 °C |
| Usage areas | Water, foodstuffs, chemistry, air and other gases etc. |
Parts list
| No | Item description | Material |
|---|---|---|
| 5 | Bolt | 8.8. / 8.8. / 1.4301. |
| 4 | Glass tightness element | PTFE / PTFE / PTFE |
| 3 | Glass | Tem. Glass / DIN 7080 / DIN 7080 |
| 2 | Cover | GG 25 / GS C 25 / 1.4301. - 1.4401. |
| 1 | Body | GG 25 / GS C 25 / 1.4301. - 1.4401. |

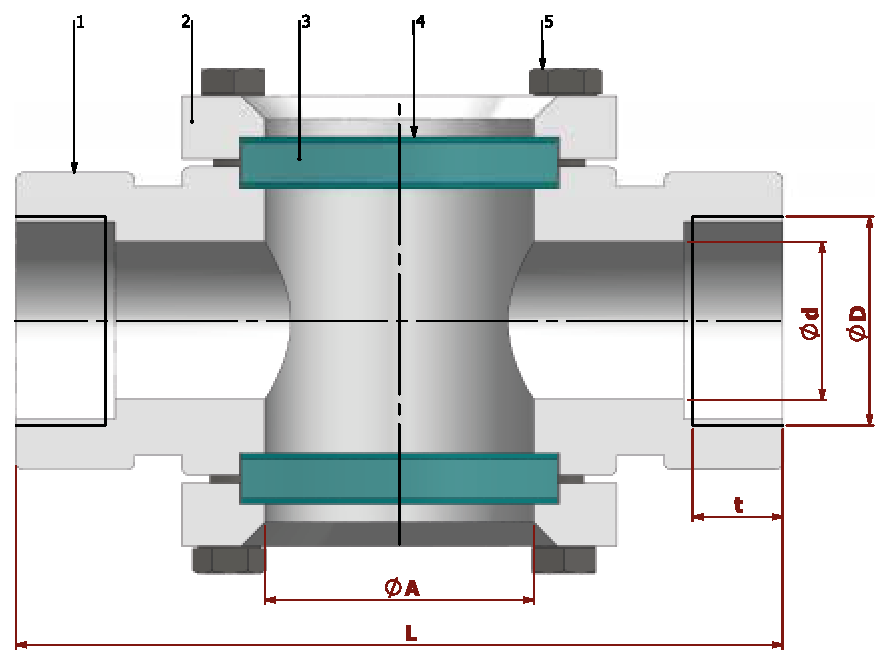

Dimensions and connection sizes
| DN | Size | L | d | D | t | PN 16 | PN 40 | ||
|---|---|---|---|---|---|---|---|---|---|
| A | Kg | A | Kg | ||||||
| DN 15 | 1/2" | 100 | 15 | 1/2" | 14 | 40 | 1,40 | 34 | 0,90 |
| DN 20 | 3/4" | 120 | 20 | 3/4" | 17 | 40 | 1,50 | 34 | 1,80 |
| DN 25 | 1" | 135 | 25 | 1" | 20 | 48 | 2,00 | 44 | 2,80 |
| DN 32 | 1 1/4" | 160 | 32 | 1 1/4" | 22 | 67 | 3,10 | 60 | 4,50 |
| DN 40 | 1 1/2" | 185 | 40 | 1 1/2" | 25 | 68 | 4,00 | 60 | 6,30 |
| DN 50 | 2" | 200 | 50 | 2" | 28 | 85 | 6,00 | 80 | 8,30 |
