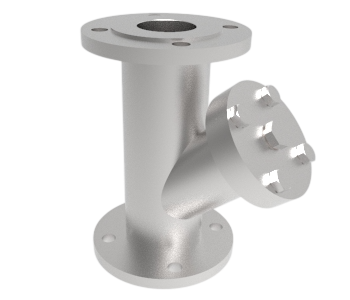

Strainer Class 300 (PN 50) — Flanged (Steel)
Class 300 (PN 50) strainer for DN 50 to DN 200 lines, type BPT-FL, flanged, with dimensions to ASME B 16.10 and connections to ASME B 16.5. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Strainer |
|---|---|
| Type code | BPT - FL |
| Size range | DN 50 – DN 200 |
| Connection | Flanged |
| Dimensions | ASME B 16.10 |
| Connections | ASME B 16.5 |
| Working pressure | CLASS 300 (PN 50) |
| Working temperature | −29 °C / +180 °C |
| Usage areas | Water, hot water, steam and non-flammable gases · Natural gas, LPG-LNG, fuel-oil, pressurized air and other gases etc. |

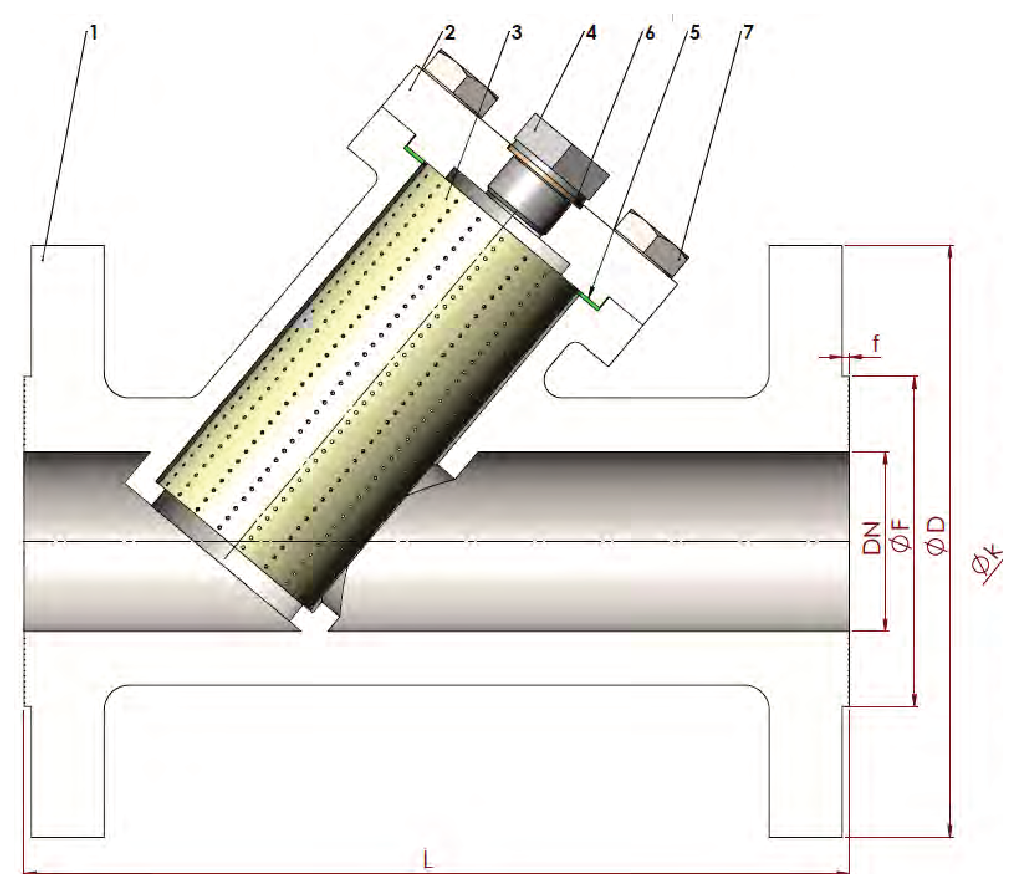

Parts list
| No | Item description | Material |
|---|---|---|
| 7 | Bolt | 8.8. |
| 6 | Tightness element | Cu |
| 5 | Tightness element | PTFE |
| 4 | Valve cap | C 22 |
| 3 | Ball tightness element | 1.4301 |
| 2 | Cover | A 216 WCB |
| 1 | Body | A 216 WCB |

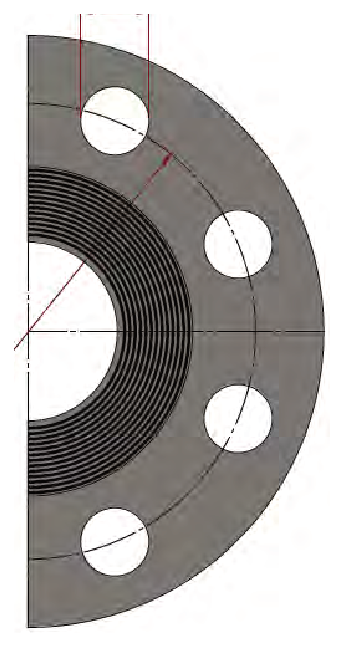

Dimensions and connection sizes
| DN | Size | CLASS 300 (PN 50) | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| L | f | D | b | k | Hole unit | I | F | Kg | ||
| DN 50 | 2" | 230 | 2 | 165 | 22,3 | 127 | 8 | 19,1 | 91,9 | — |
| DN 65 | 2 1/2" | 290 | 2 | 190 | 25,4 | 149,2 | 8 | 22,4 | 104,6 | — |
| DN 80 | 3" | 310 | 2 | 210 | 28,6 | 168,3 | 8 | 22,4 | 127 | — |
| DN 100 | 4" | 350 | 2 | 255 | 31,8 | 200 | 8 | 22,4 | 157,2 | — |
| DN 125 | 5" | 400 | 2 | 280 | 34,9 | 235 | 8 | 22,4 | 185,7 | — |
| DN 150 | 6" | 480 | 2 | 320 | 36,6 | 269,9 | 12 | 22,4 | 215,9 | — |
| DN 200 | 8" | 600 | 2 | 380 | 41,3 | 330,2 | 12 | 25,4 | 269,7 | — |
