PN/16/25/40 EU-2 Full Bore/Flanged (Steel)

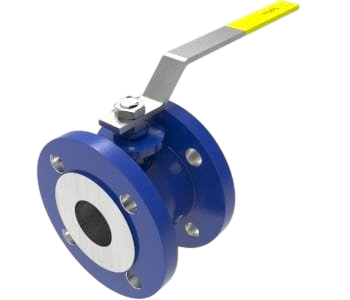

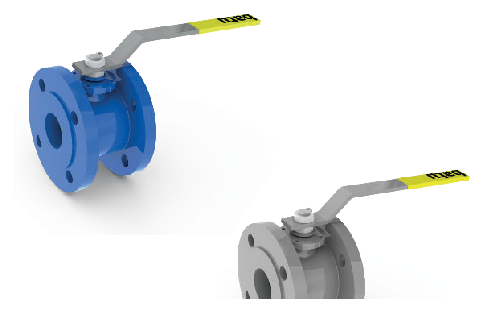

PN 16/25/40 EU-002 ball valve for DN 32 to DN 150 lines, type BKV-EU 002, full bore and flanged, in steel. Built to EN 1092 – 1. See all eu ball valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | EU-002 ball valve |
|---|---|
| Type code | BKV - EU 002 |
| Size range | DN 32 – DN 150 |
| Body | Steel |
| Connection | Full bore / Flanged |
| Dimensions | BATUSAN ÖZEL |
| Connections | EN 1092 - 1 |
| Working pressure | PN 16 - 25 - 40 |
| Working temperature | −30 °C / +180 °C |
| Usage areas | Natural gas, LPG-LNG, fuel-oil, pressurized air and other gases etc. |

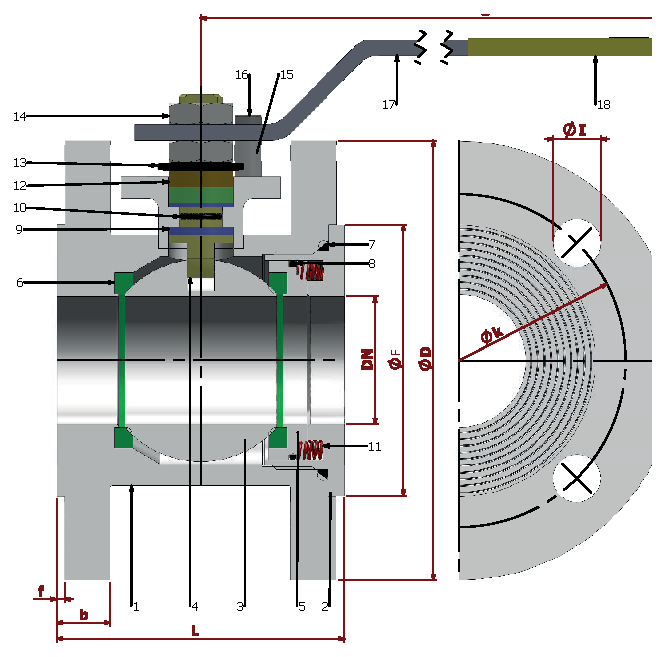

Parts list
| No | Item description | Material |
|---|---|---|
| 18 | Plastic covering | PVC / PVC |
| 17 | Ball action handle | st 37 / 1.4301. |
| 16 | Bolt | ST 42 Gal. / 1.4301. - 1.4401. |
| 15 | Stopping pin | ST 42 Gal. / 1.4301. |
| 14 | Counter nut | 5,6 Gal. / 1.4301. |
| 13 | Bowl washer | 50 Cr V 4 / 1.4301. |
| 12 | Pressure ring | MS 58 / 1.4301. - 1.4401. |
| 11 | Spring | 1.4301. / 1.4301. - 1.4401. |
| 10 | Spindle o-ring | VITON / VITON |
| 9 | Neck tightness element | PTFE-Teflon / PTFE-Teflon |
| 8 | Body o-ring | VITON / VITON |
| 7 | Body o-ring | VITON / VITON |
| 6 | Ball tightness element | PTFE-Teflon / PTFE-Teflon |
| 5 | Tightness ring | 22 Mn 6 / 1.4301. - 1.4401. |
| 4 | Action spindle | 1,4021 / 1.4301. - 1.4401. |
| 3 | Ball | 1.4301 / 1.4086 / 1.4305. - 1.4401. |
| 2 | Cover | 22 Mn 6 / 1.4301. - 1.4401. |
| 1 | Body | 22 Mn 6 / 1.4301. - 1.4401. |
Dimensions and connection sizes
| DN | Size | L | G | H | f | PN 16 | PN 40 | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D | b | k | Hole unit | I | F | Kg | D | b | k | Hole unit | I | F | Kg | ||||||
| DN 32 | 1 1/4" | 104 | 230 | 95 | 2 | 140 | 16 | 100 | 4 | 18 | 78 | -- | 140 | 18 | 100 | 4 | 18 | 78 | -- |
| DN 40 | 1 1/2" | 106 | 275 | 115 | 3 | 150 | 16 | 110 | 4 | 18 | 88 | -- | 150 | 18 | 110 | 4 | 18 | 88 | -- |
| DN 50 | 2" | 108 | 275 | 120 | 3 | 165 | 18 | 125 | 4 | 18 | 102 | -- | 165 | 20 | 125 | 4 | 18 | 102 | -- |
| DN 65 | 2 1/2" | 112 | 320 | 135 | 3 | 185 | 18 | 145 | 4 | 18 | 122 | -- | 185 | 22 | 145 | 8 | 18 | 122 | -- |
| DN 80 | 3" | 140 | 380 | 150 | 3 | 200 | 20 | 160 | 8 | 18 | 138 | -- | 200 | 24 | 160 | 8 | 18 | 138 | -- |
| DN 100 | 4" | 190 | 450 | 170 | 3 | 220 | 20 | 180 | 8 | 18 | 158 | -- | 235 | 24 | 190 | 8 | 22 | 162 | -- |
| DN 125 | 5" | 325 | 450 | 200 | 3 | 250 | 22 | 210 | 8 | 18 | 188 | -- | 270 | 26 | 220 | 8 | 26 | 188 | -- |
| DN 150 | 6" | 350 | 650 | 235 | 3 | 285 | 22 | 240 | 8 | 22 | 212 | -- | 300 | 28 | 250 | 8 | 26 | 218 | -- |
