PN 25 Full Bore/Threaded (Sphero)

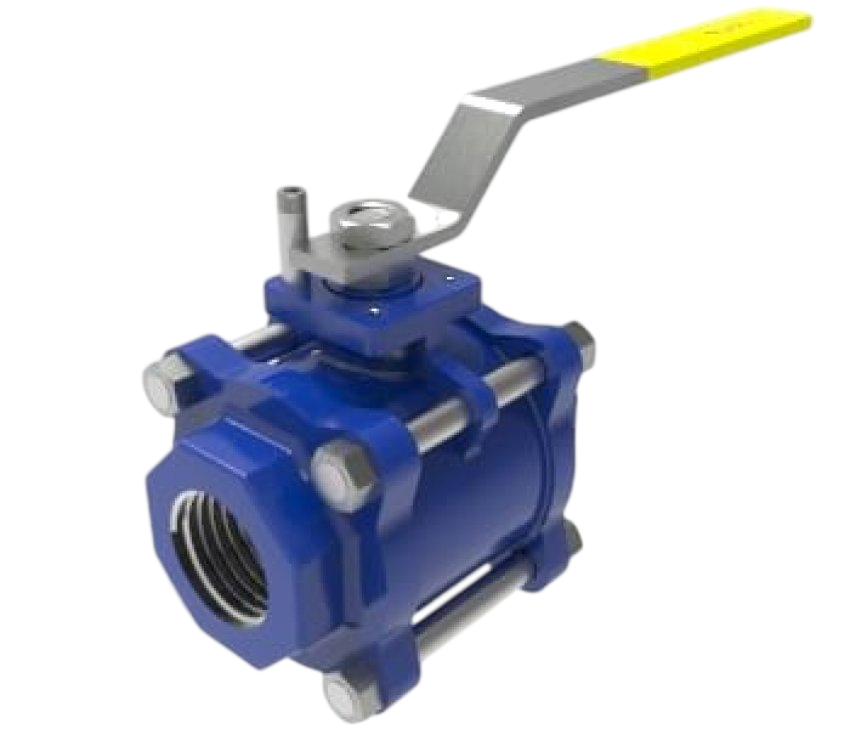

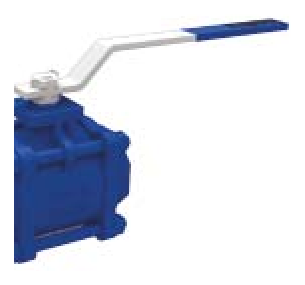

PN 25 ball valve for R 1/2″ to R 4″ lines, type BKV-Dİ-TG, full bore and threaded, in spheroidal cast iron. Built to EN 10226-1. See all cast iron water ball valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Ball valve |
|---|---|
| Type code | BKV-Dİ-TG |
| Size range | R 1/2" – R 4" |
| Body | Sphero |
| Connection | Full bore / Threaded |
| Connections | EN 10226-1 |
| Working pressure | PN 25 |
| Working temperature | −20 °C / +180 °C |
| Usage areas | Water, hot water, steam, pressurized air |

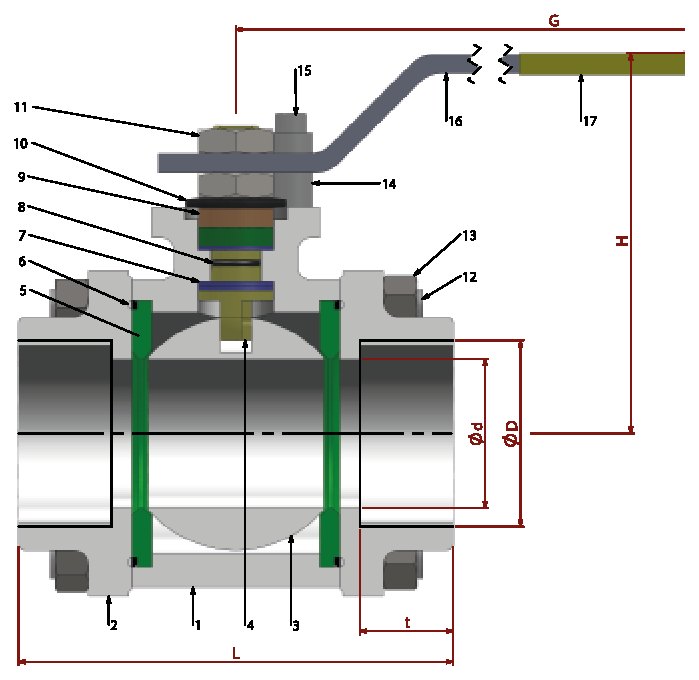

Parts list
| No | Item description | Material |
|---|---|---|
| 17 | Plastic covering | PVC |
| 16 | Ball action handle | st 37 |
| 15 | Bolt | ST 42 Gal. |
| 14 | Stopping pin | ST 42 Gal. |
| 13 | Nut | 5.6. |
| 12 | Stopping pin | CK 35 / CK 45 |
| 11 | Counter nut | 5,6 Gal. |
| 10 | Bowl washer | 50 Cr V 4 |
| 9 | Pressure ring | MS 58 |
| 8 | Spindle o-ring | VITON |
| 7 | Neck tightness element | PTFE-Teflon |
| 6 | Body o-ring | VITON |
| 5 | Ball tightness element | PTFE-Teflon |
| 4 | Action spindle | 1,4021 |
| 3 | Ball | 1.4301 / 1.4086 |
| 2 | Cover | GGG 40.3 |
| 1 | Body | GGG 40.3 |
Dimensions and connection sizes
| DN | Size | PN 25 | ||||||
|---|---|---|---|---|---|---|---|---|
| L | G | H | d | D | t | Kg | ||
| DN 15 | 1/2" | 75 | 150 | 75 | 15 | 1/2" | 14 | 1,1 |
| DN 20 | 3/4" | 80 | 150 | 83 | 20 | 3/4" | 17 | 1,4 |
| DN 25 | 1" | 90 | 180 | 90 | 20 | 1" | 20 | 2,0 |
| DN 32 | 1 1/4" | 110 | 230 | 95 | 32 | 11/4" | 22 | 2,8 |
| DN 40 | 1 1/2" | 120 | 275 | 115 | 40 | 11/2" | 25 | 3,6 |
| DN 50 | 2" | 140 | 275 | 120 | 50 | 2" | 28 | 5,7 |
| DN 65 | 2 1/2" | 170 | 320 | 135 | 65 | 2 1/2" | 32 | -- |
| DN 80 | 3" | 195 | 380 | 150 | 80 | 3" | 35 | -- |
| DN 100 | 4" | 230 | 450 | 170 | 100 | 4" | 40 | -- |
