PN 16/40 Threaded (Steel)

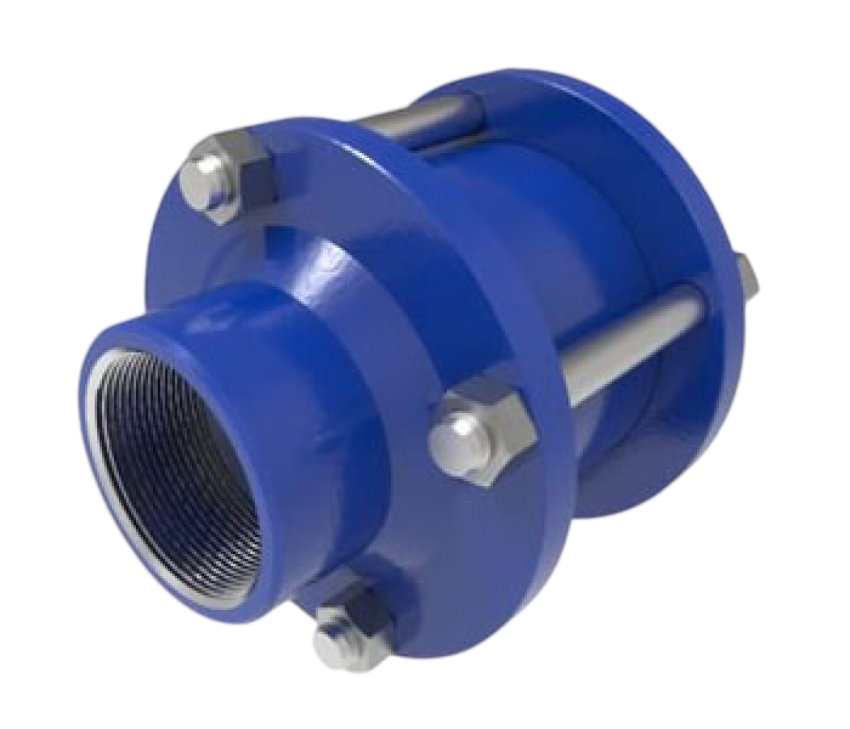

PN 16/40 threaded check valve for R 1/2″ to R 4″ lines, type BÇV-Dİ, in steel, to EN 10226-1 threaded connections. See all check valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Check valve |
|---|---|
| Type code | BÇV - Dİ |
| Size range | R 1/2" – R 4" |
| Body | Steel |
| Connection | Threaded |
| Dimensions | BATUSAN ÖZEL |
| Connections | EN 10226-1 |
| Working pressure | PN 16 - 40 |
| Working temperature | −30 °C / +180 °C |
| Usage areas | Water, hot water, steam, pressurized air |

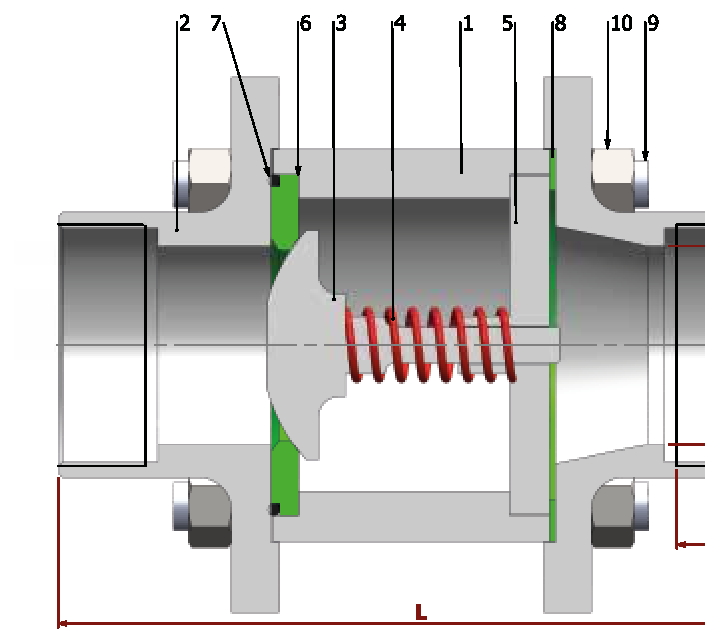

Parts list
| No | Item description | Material |
|---|---|---|
| 10 | Nut | 5.6. / 1.4301. - 1.4401. |
| 9 | Stopping pin | CK 35 / CK 45 / 1.4301. |
| 8 | Body tightness element | PTFE-Teflon / PTFE-Teflon |
| 7 | O-ring | VITON / VITON |
| 6 | Ball tightness element | PTFE-Teflon / PTFE-Teflon |
| 5 | Ball seat | st 37-2 / 1.4301. - 1.4401. |
| 4 | Spring | 1.4301. / 1.4301. - 1.4401. |
| 3 | Ball | 1.4301 / 1.4021 / 1.4301. - 1.4401. |
| 2 | Cover | st 37-2 / 1.4301. - 1.4401. |
| 1 | Body | St 44 / 1.4301. - 1.4401. |
Dimensions and connection sizes
| DN | Size | L | d | D | t | PN 16 | PN 40 |
|---|---|---|---|---|---|---|---|
| Kg | Kg | ||||||
| DN 15 | 1/2" | 100 | 15 | 1/2" | 14 | 0,6 | -- |
| DN 20 | 3/4" | 100 | 20 | 3/4" | 17 | 1,1 | -- |
| DN 25 | 1" | 115 | 20 | 1" | 20 | 1,8 | -- |
| DN 32 | 1 1/4" | 135 | 32 | 11/4" | 22 | 2,6 | -- |
| DN 40 | 1 1/2" | 150 | 40 | 11/2" | 25 | 3,5 | -- |
| DN 50 | 2" | 175 | 50 | 2" | 28 | 5,0 | -- |
| DN 65 | 2 1/2" | 190 | 65 | 2 1/2" | 32 | -- | -- |
| DN 80 | 3" | 230 | 80 | 3" | 35 | -- | -- |
| DN 100 | 4" | 300 | 100 | 4" | 40 | -- | -- |
