Valve Manufacturing Process

Valve Manufacturing Process

7,000 m²Indoor Area
100 KProduction Capacity
+150Plant Equipment

In the valve manufacturing process, a valve passes through eight stages before it is installed on a line: design, materials, machining, coating and welding, assembly, testing, painting and shipment. What is done and what is checked at each stage is summarised below.

VALVE MANUFACTURING STAGES
API 6D Double Block and Bleed (DBB) Ball Valve – Oil and Gas Production

From design to shipment

Design and engineering

  • The valve is designed with computer-aided design (CAD/CAM) software.
  • Its strength under service conditions is examined by finite element analysis and the design is improved accordingly.
  • On pig valves the face-to-face dimension can be adapted to the customer's line.

API 6DASME B16.34ASME B16.10

1

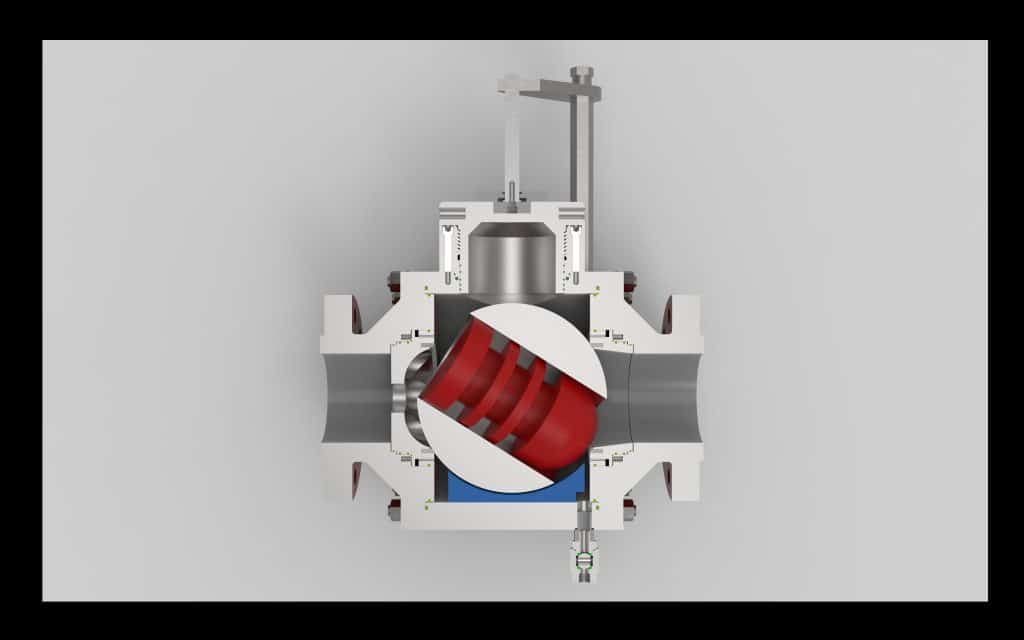

Valve Design

Materials

  • Materials are procured in accordance with technical specifications.
  • Each batch is delivered with a test certificate stating its chemical and mechanical values.
  • Incoming material is inspected for dimensions, appearance and certification.

EN 10204 3.1

2

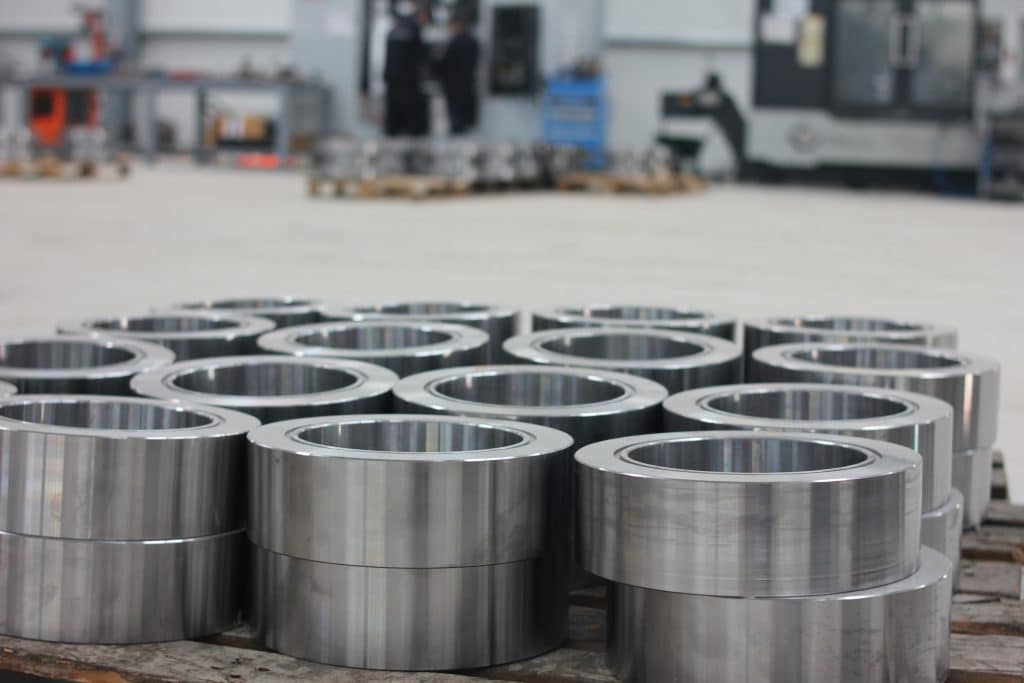

Machined steel rings stacked on a pallet

Machining (CNC)

  • The body, closure, stem and seat rings are machined to size on CNC lathes and machining centres.
  • This stage of valve manufacturing is carried out at two facilities, in Dilovası and Sakarya.
  • After each operation the dimensions of the part are checked against the technical drawing.
3

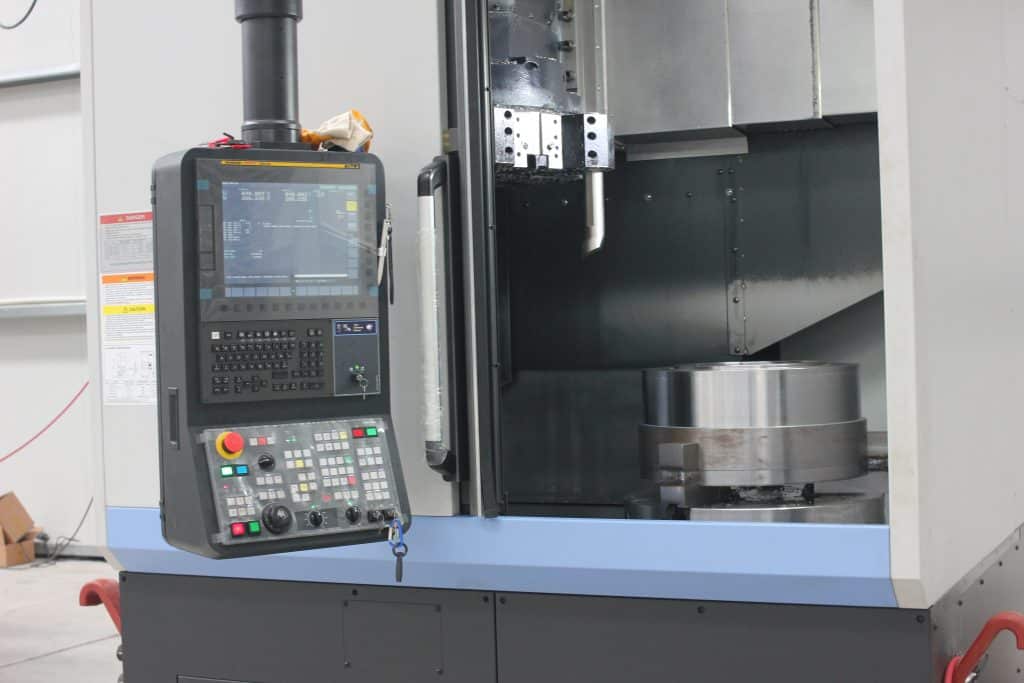

CNC vertical lathe: control panel and workpiece clamped in the chuck

Coating and welding

  • Carbon steel balls are nickel plated (ENP).
  • After plating the surface is polished and inspected.
  • The body of fully welded valves is closed by welding.
4

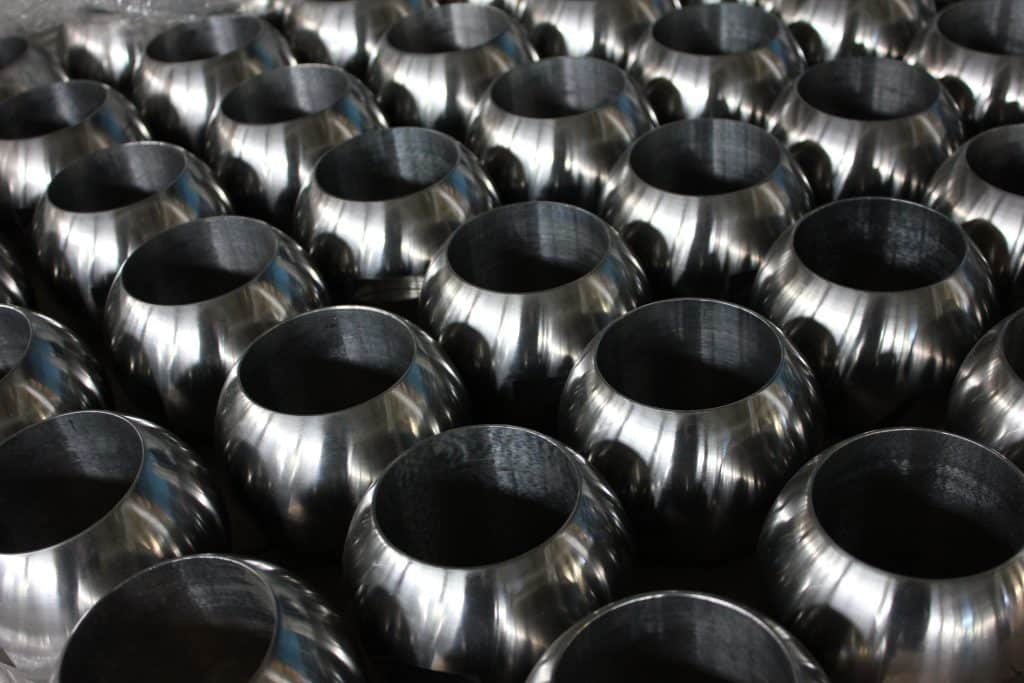

Polished ball valve balls

Assembly

  • Parts are assembled in the sequence set out in the work instruction.
  • The body studs are tightened crosswise to the specified torque value.
  • After assembly the operating torque is measured and recorded.
5

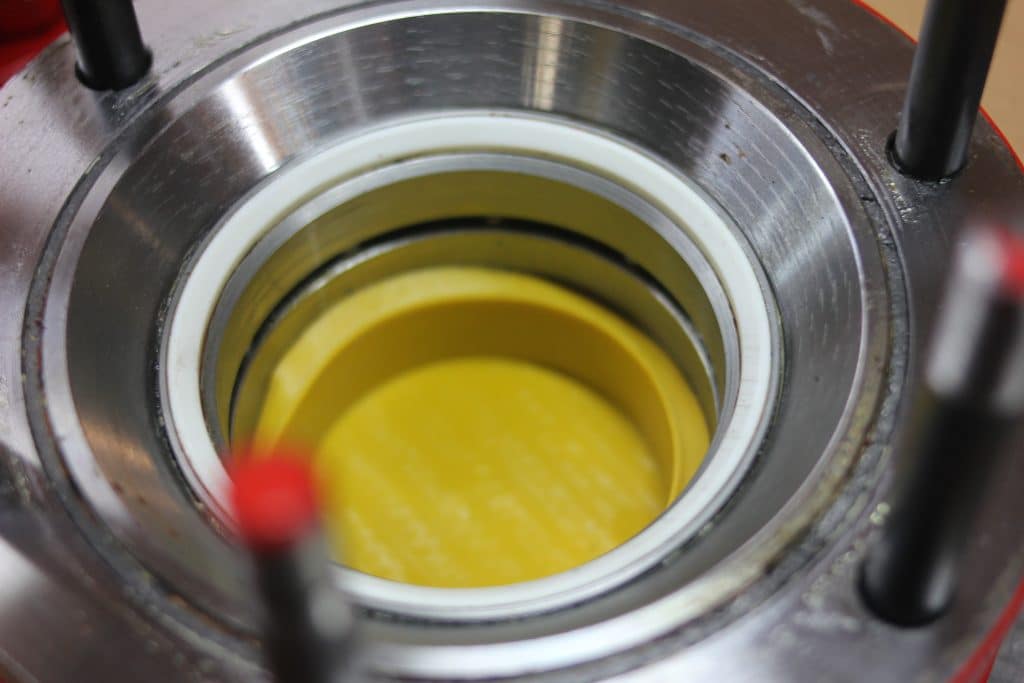

Seat pocket inside the valve body and yellow protective cap

Pressure and leak tests

  • Every valve is tested individually before shipment.
  • The shell test is carried out at 1.5 times and the seat test at 1.1 times the working pressure.
  • On request, a leak test with air at 6 bar is also applied.

API 6DAPI 598ISO 5208

6

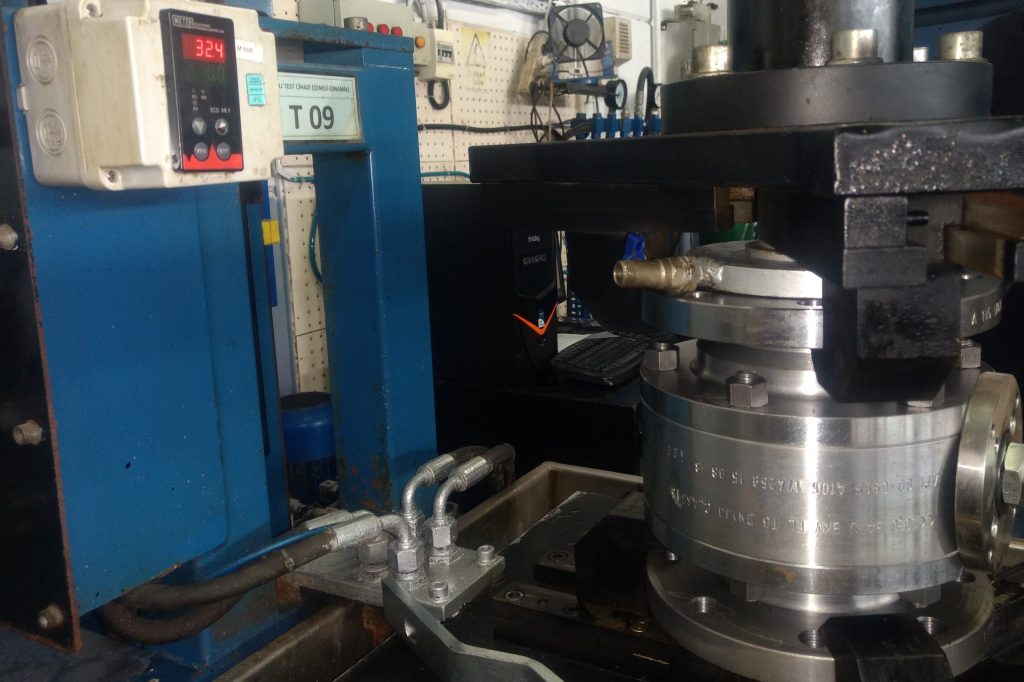

Ball valve clamped on the hydrostatic test bench with digital pressure gauge

Painting and marking

  • The valve is painted; paint thickness and adhesion are checked.
  • The size, pressure rating, material, date of manufacture and serial number are marked on the nameplate.
  • The serial number provides traceability of the product.
7

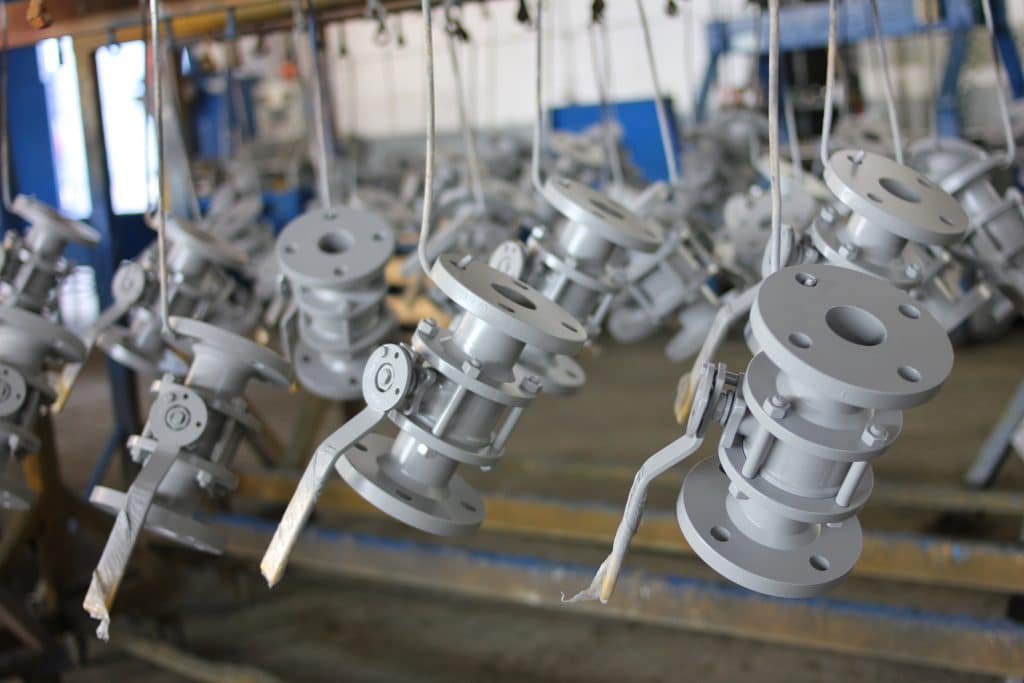

Grey painted ball valves hanging to dry after painting

Packaging and shipment

  • The end connections are closed with covers to prevent the ingress of foreign matter.
  • Valves are shipped on pallets in boxes or wooden crates.
  • Heavy valves are handled by their lifting lugs.
8

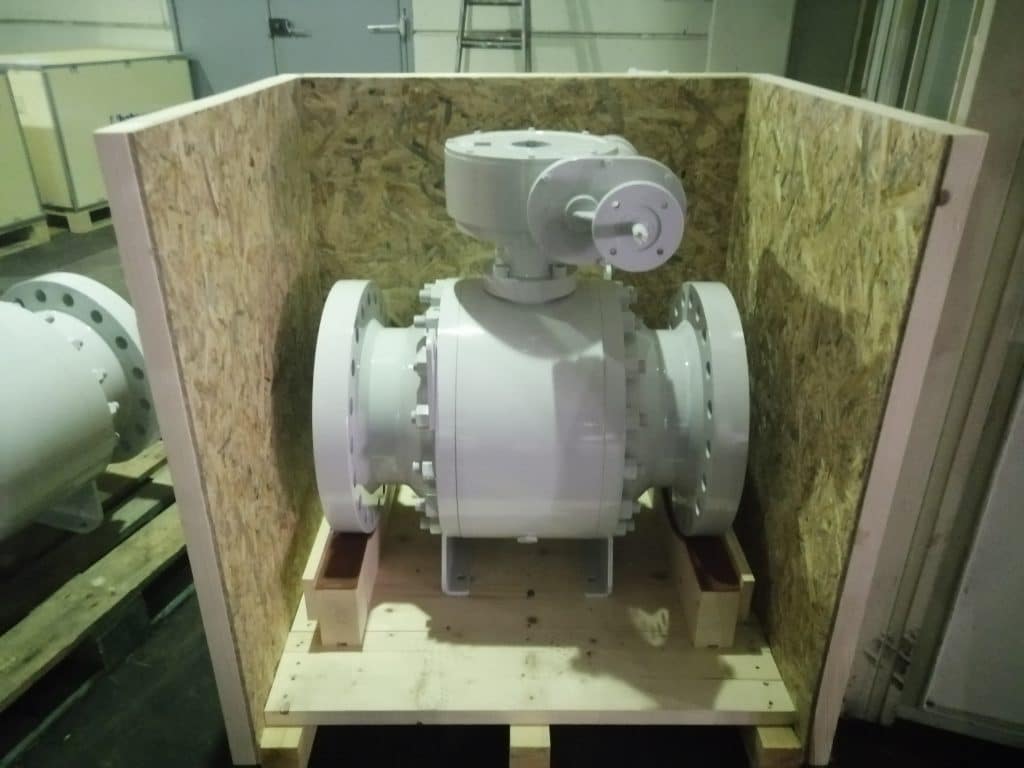

Gear-operated ball valve packed in an OSB crate for shipment

Valve manufacturing standards

API 6DASME B16.34ASME B16.5ASME B16.10TS EN 331TS 9809TS EN 13942

  • API 6D: design and test requirements for pipeline valves.
  • ASME B16.34: pressure and temperature ratings of valves.
  • ASME B16.5: flange dimensions.
  • ASME B16.10: face-to-face dimensions of valves.
  • TS EN 331 and TS 9809: natural gas ball valves.
  • TS EN 13942: pipeline valves.

Certificates

ISO 9001CETSE

The conformity of our valve manufacturing to these standards is verified by the certificates of independent bodies. The current certificates are available on the Quality Certificates page.
