PN 16 Disc (Brass)

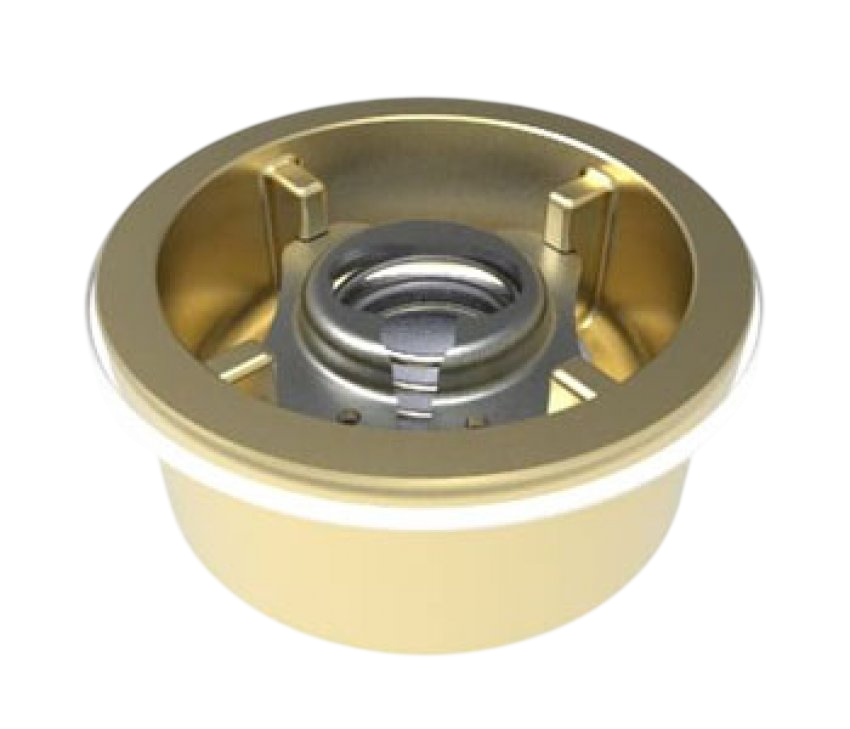

PN 16 disc check valve for DN 15 to DN 200 lines, type BÇV-D, mounted between two flanges, to BATUSAN ÖZEL dimensions. See all check valve models. The tables below are the data sheet itself: the specification, the parts list with materials, and the dimensions and connection sizes.
Specifications
| Type | Disc check valve |
|---|---|
| Type code | BÇV - D |
| Size range | DN 15 – DN 200 |
| Dimensions | BATUSAN ÖZEL / Special |
| Connections | Between two flanges |
| Working pressure | PN 16 |
| Working temperature | −10 °C / +250 °C |
| Usage areas | Water, hot water, steam, pressurized air |

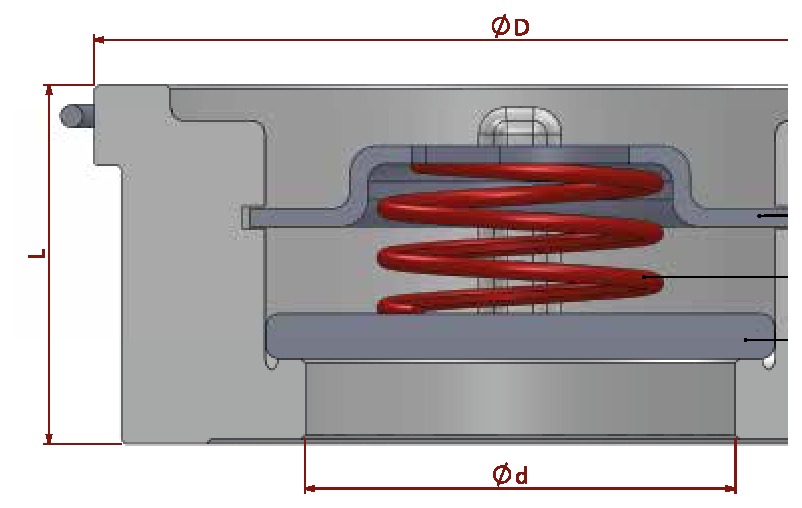

Parts list
| No | Item description | Material |
|---|---|---|
| 5 | Hoop | 1.4301. - 1.4401. |
| 4 | Segment | 1.4301. - 1.4401. |
| 3 | Spring | 1.4301. - 1.4401. |
| 2 | Disc | 1.4301. - GGG 50 |
| 1 | Body | MS 58 – GGG 50 |
Dimensions and connection sizes
| DN | Size | PN 16 | |||
|---|---|---|---|---|---|
| L | D | d | Kg | ||
| DN 15 | 1/2" | 16 | 40 | 15 | 0,09 |
| DN 20 | 3/4" | 19 | 47 | 20 | 0,14 |
| DN 25 | 1" | 22 | 56 | 25 | 0,20 |
| DN 32 | 1 1/4" | 28 | 72 | 31 | 0,47 |
| DN 40 | 1 1/2" | 31,5 | 82 | 39 | 0,62 |
| DN 50 | 2" | 40 | 65 | 8 | 1,00 |
| DN 65 | 2 1/2" | 46 | 115 | 63 | 1,52 |
| DN 80 | 3" | 58 | 132 | 75 | 2,10 |
| DN 100 | 4" | 60 | 152 | 89 | 3,15 |
| DN 125 | 5" | 90 | 183 | 112 | 6,50 |
| DN 150 | 6" | 106 | 210 | 132 | 8,50 |
| DN 200 | 8" | 142 | 264 | 175 | 14,50 |
